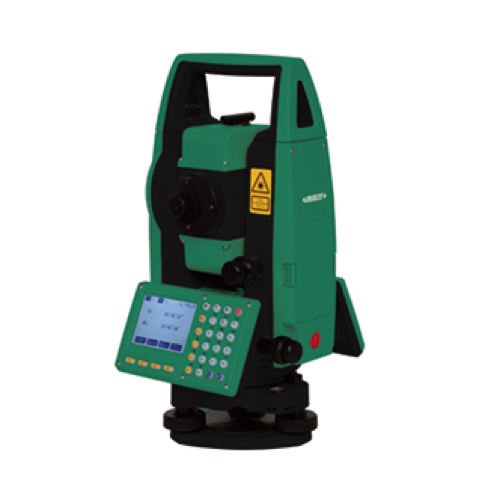

INSIZE TSA-B33 Total Station (5000m, 1500m)

Distance Measurement (With cooperation target)

Measuring range:

Prism: 5000m

Reflective patch (60mm×60mm): 1000m

Accuracy: ±(2+2×10⁻⁶D)mm, D is the measuring distance (in mm)

Measuring time:

Continuous measurement: 0.25S

Tracking measurement: 0.1S

Single measurement: <1.0S

Prism-free Distance Measurement (Without cooperation target)

Measuring range: 1500m (Kodak Grey, 90% reflectivity)*

Accuracy:

0-300m: ±(3+2×10⁻⁶D)mm

300-600m: ±(5+2×10⁻⁶D)mm

600m: ±(10+2×10⁻⁶D)mm, D is the measuring distance (in mm)

Measuring time:

Continuous measurement: 0.25S

Tracking measurement: 0.1S

Single measurement: <1.0S

Angle Accuracy: ±2"

Minimum Angular Reading: 0.1"/1" (selectable)

Telescope Barrel Length: 152mm

Telescope Magnification: 30X

Field of View: 1°30"

Frame Rate: 3"

Minimum Focus Distance: 1.5m

Compensator: Range: ±6', Accuracy: ±1"

Tube Level Bubble: 30"/2mm

Round Level Bubble: 8/2mm

Display

Screen type: 240x160 dot matrix high definition, high brightness display

Screen size: 3.1 inch

Digital display: Maximum: 99999999.9999m Minimum: 0.1mm

Data Transmission: USB flash drive, Bluetooth

Power supply: 7.4V replaceable battery for 8 hours of continuous operation

Dimension (L×W×H): 206mm×180mm×353mm

Weight: 5.4kg

*Good weather: overcast sky, light wind, no fog, visibility about 40km

Standard Delivery

Main unit: 1 pc

Tripod: 1 pc

Power adapter and charging cable: 1 set

Li-ion battery: 2 pcs

USB flash drive: 1 pc

Measuring tape: 1 pc
