Workpiece clamping mode: center-type bench center (with centre holes at the end)
Measuring range of workpieces:
length: 5~300mm
diameter: 3~60mm
max. weight: 20kg
Workpiece clamping mode: V-type bench center (without centre holes at the end)
Measuring range of workpieces:
length: 10~230mm
diameter: 10~60mm
max. weight: 1.5kg
Accuracy at 25°C: ±(0.5+10%D) µm, D is measuring diameter in mm
Repeatability at 25°C: (0.3+5%D) µm, D is measuring diameter in mm
Runout accuracy at 25°C: ≤5 µm
Size of working table: 400x200mm
Driving method: motor drive
Power supply: 220V, 50/60Hz
Dimension: 750x600x900mm
Weight: 50kg
Standard Delivery
Main unit: 1pc
Center-type bench center: 1pc
V-type bench center: 1pc

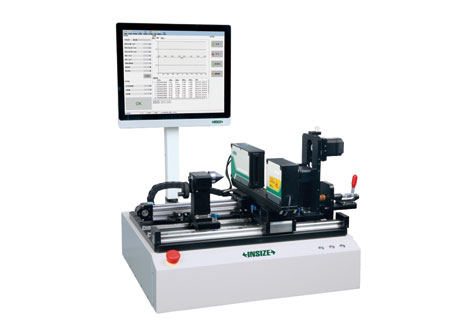

■ Motorised rotation with adjustable speed
■ Auto-moving laser scan micrometer
■ Measure the outer diameter, roundness and runout of workpieces at multiple sections
Measuring software (included):
■ Language: English and Chinese
■ Operating system: Windows 7
■ Measure the outer diameter, roundness and runout of workpieces automatically, then the data, trend graphs and judgement results can be displayed in real time
■ Auto-saving measurement data, query and export to EXCEL at any time
■Switch to manual test to move the laser scan micrometer and rotate the motor by hand
