Direct access to our certified experts

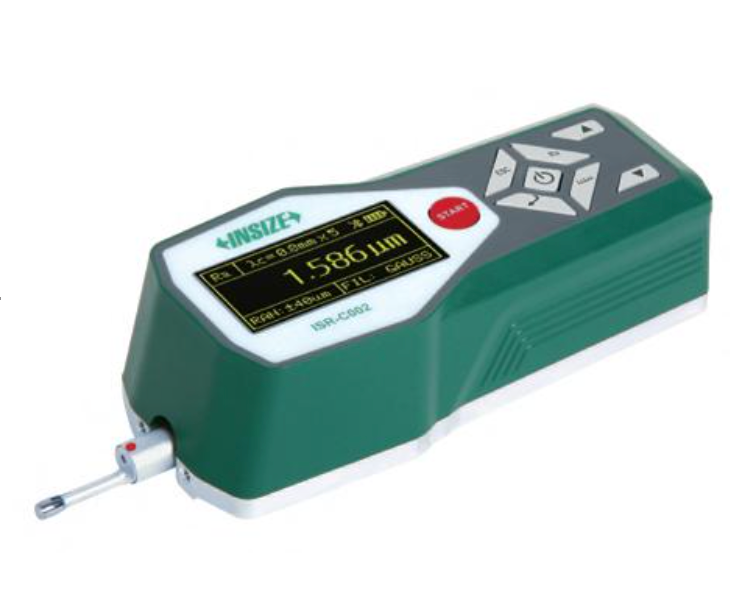

21 roughness parameters
Connected with printer via bluetooth
Can display roughness values, profile and curve
Memory of maximum 100 results
Automatic power off
Parameters: Ra, Rq, Rv, Rp, Rm, Rt, RS, Rsm, R3z, R3y, Rz, Rku, Rsk, Rmax, Rpc, Rk,
Rpc, Rpk, Rvk, Mr1, Mr2
Range: 160µm
Accuracy: ±3%
Resolution (Ra): 0.001µm
Probe type: inductive
Probe Stylus radius/ angle: 5µm/90 °
Probe stylus material: diamond
Measuring force: 4mN
Measuring unit: µm/µin
Cut off: 0.25/0.8/2.5mm
Numbers of cut-offs: 1-5
Traverse speed: 0.5mm/s, 1mm/s
Memory: 100 measurement results
Output: USB and bluetooth
Power: built-in rechargeable results
Dimension(L×W×H): 141x55x40mm
Weight: 440g
