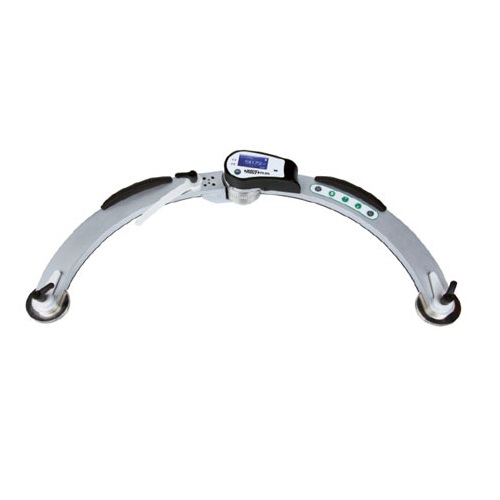

INSIZE ISQ-RA600 Large Diameter Gage

Specifications:

Range

- external: Ø500~6000mm/19.69~236.22"

- internal: Ø1100~6000mm/43.31~236.22"

Resolution: 0.01mm/0.001"

Accuracy: ±(0.01+D²/30)mm

(D is the diameter to be measured, in meter)

Power supply: rechargeable battery (for 8 hour working)

Weight: 3.8kg

Features:

To measure large external or internal diameters

Automatic judgment and display external or internal diameter

Backlight LCD display, can rotate 180°C for easy reading

Memory of 12 readings and average calculation

With minimum and maximum measurement mode

Angle can be displayed

Standard delivery:

Main unit: 1pc

AC/DC adapter: 1pc

USB cable and software: 1pc

Datasheet
