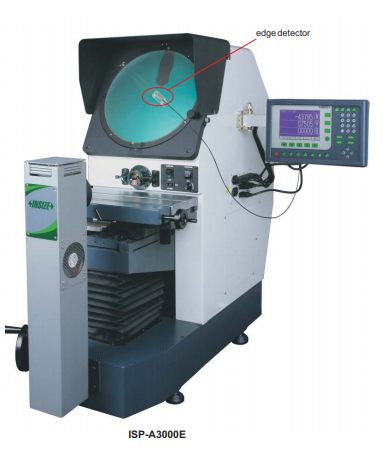

Edge detector (included)
Programming for batch measurements
Power supply: 110V,50/60Hz
Lens:
Magnification: 10X
View field: Ø30mm
Worrking distance: 77.7mm
Magnification accuracy: +/-0.08%
Projector screen:
Diameter: Ø300mm
Rotation range: 0°~360°,resolution:1" or 0.01°
Reference line: Cross-hairs
Stage:
Metal stage size: 400x150mm
Turning range: +/-15°
X-Z stage travel:range:200x100mm, resolution: 0.5µm, accuracy: (4+L/25)µm;L(mm)
Y (focus) travel range: 75mm
Max. load capacity: 50Kg
Output: RS232C,USB
Demension(LxWxH): 1090x830x1010mm
Weight: 160kg
Standard delivery: Main unit,Switch foot, Anti-dust cover, USB cable and software
