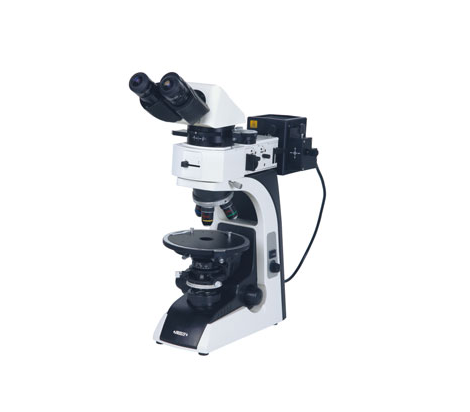

INSIZE ISM-POL1000 Polarizing Microscope (40X~600X)

Magnification: 40X~600X

Eyepiece: 10X (view field: ϕ 20mm)

Infinite strain free plan achromatic objective: 4X(transmitted/reflected); 10X (transmitted/reflected); 20X (transmitted); 40X (transmitted); 60X (transmitted)

Working distance: 22.2mm; 6.1mm; 6.4mm; 0.6mm; 0.3mm

Numerical aperture: 0.1; 0.25; 0.4; 0.65; 0.8

Stage:

-Revolving round stage

-Diameter: ϕ160mm

-Graduation: 1 °

-Resolution: 6’

Pupil distance: 63~75mm

Diopter adjustment: ±5 diopter (one eyepiece)

Illumination:

-12V/50W halogen lamp, brightness is adjustable (reflected illumination)

-12V/50W halogen lamp, brightness is adjustable (transmitted illumination)

Power supply: 110/220V, 50/60Hz

Dimension: 614x250x394mm

Weight: 13kg

Standard delivery:

-Main unit: 1pc

-Micrometer: 1pc

-Grid plate: 1pc

-10X crossing eyepiece (view field: ϕ20mm)

-10X dividing eyepiece (view field: ϕ20mm, graduation: 0.1mm)

-λslip (first class red) and 1/4 λ slip

-Quartz wedge

Optional accessory:

-Objective for reflected system

-Objective for transmitted system

-Specimen presser

Datasheet
