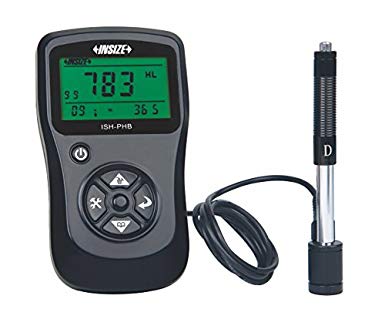

INSIZE ISH-PHB PORTABLE HARDNESS TESTER

SPECIFICATION:

Min. reading: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa

Accuracy: ±6HLD (when HLD=800)

Display: Leeb(HLD), converted hardness, material, impact direction, test times, average value, date

Output : bluetooth

Applicable workpiece:

- minimum weigh: 5kg

+ 2kg (on solid support)

+ 0.1kg (coupled on plate)

- minimum thickness: 5mm

- minimum maximum roughness(Ra): 1.6 m

- radius of curved surface: 11mm

Power supply: 3 AAA batteries

Dimension: 150×84×28mm

Weight: 200g

APPLICABLE MATERIAL AND HARDNESS RANGE FOR IMPACT DEVICE D:

- Steel & cast steel: 20-68(HRC), 38-100(HRB), 81-654(HB), 81-955(HV), 32-100(HS), 375-2639(Mpa)

- Tool steel: 93-334(HB)

- Stainless steel: 46-101(HRB), 85-802(HV), 85-655(HV).

- Cast aluminum alloy: 19-164(HB), 23-84(HRB)

- Cast iron: 360-650 (HLD), 93-334(HB)

- Brass: 200-550(HLD), 40-173(HB), 13-95 (HRB)

- Bronze: 300-700( HLD), 60-290(HB)

- Copper: 200-690(HLD), 45-315(HB)

STANDARD DELIVERY: Main unit , Impact device D, Hardness test block, Small support ring, Cleaning brush
