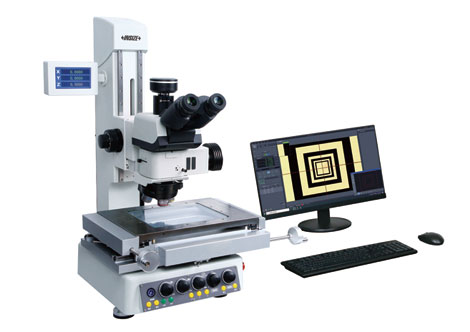

Code ISD-TM430
X/Y axis travel: 400x300mm
Metal stage size: 600x450mm
Glass stage size: 450x300mm
Z axis travel: 210mm
Z axis drive method: manual coarse and fine adjustment, motorized coarse and fine adjustment
Resolution of X/Y/Z axis: 0.1μm
Accuracy of X/Y axis: ≤(2.5+L/50)μm(L is the measuring length in mm)
Repeatability of X/Y axis: 2μm
Optical magnification: 50X-500X(up to 1000X with optional 100X objective)
Digital magnification: 150X-1500X(on 23.8" monitor), up to 3000X with optional 100X objective
Eyepiece: large field SWH10X-H(view field: 25mm, adjustable visibility), with crossline
Illumination: critical/kohler Illumination, supporting bright field, polarized light, dark field and other lighting
Observation tube: 15-45° adjustable, inverse image, distance adjustable: 45-78mm, 0/100, 100/0 binocular
Diopter adjustment: +5 diopter (two eyepieces)
Max. weight of workpiece: 30kg
Power supply: 110-220V, 50/60Hz
Dimension: 780x750x820mm
Weight: 215kg
STANDARD DELIVERY
Main unit: 1pc
Anti-dust cover: 1pc
0.63X camera adapter (adjustable focus) 1pc
Camera (20M pixel): 1pc
■ For precision measurement and observation of industrial devices
ECGO infinite chromatic aberration correction optical system
■ High-density super power white LED chip array, high color rendering index, long life
■ High precision linear scales
■ Adopting motorized objective lens switching and supporting light intensity management
■ Motorized Z-axis and focusing assist are included
■ Measuring software is included, in-field image direct measurement, quick reading, out of image measurement for large workpieces, accurate measurement through image point selection, vector layer construction
