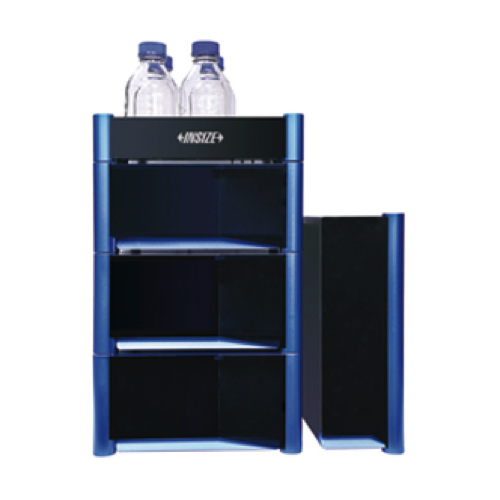

INSIZE HLC-3000 Liquid Chromatography (190~800nm)

Detector:

Analysis material: organic compounds, inorganic ions, biomolecules (such as DNA, proteins) with UV-visible absorption properties

Type: Ultraviolet-Visible detector

Wavelength range: 190~800nm

Baseline noise: ≤1.5×10⁵ AU

Baseline drift: ≤2.0×10⁻⁴ AU/h

Light source: deuterium lamp, tungsten lamp

Bandwidth: 8nm

Minimum detection concentration: ≤1.0×10⁻⁹ g/mL

Linear range: ≥2.5 AU

Wavelength accuracy: ±1nm

Wavelength repeatability: ≤±0.2nm

Detection cell temperature control: 5-55°C, setting step 0.1°C

Detection cell optical range: 10nm

Detection cell pressure: ≤0.1 MPa

High Pressure Pump:

Pump type: binary high pressure constant current pump

Gradient mixing accuracy: ±0.5%

Gradient mixing precision: ≤0.1%

Flow range: 0.001~10.000 mL/min

Maximum working pressure: 90 MPa

Flow stability: ≤0.06%

Gradient composition ratio: 0~100%, programmable range

Pressure pulsation: ≤0.1 MPa

Auto-sampler:

Temperature control range: 4~40°C

Special function: empty bottle detection and false tie alarm

Injection method: full loop injection, lossy injection, lossless injection

Input range: 0~100 μL

Vial quantity and specification: 210th (1mL vial), 120th (2mL vial), 72th (4mL vial), double 96-well plate (support base magnetic plate option)

Input residue: <0.002%

Sample repeatability: <0.03%

Feed rate: support high-speed sampling mode, the fastest can realize 1s sampling

Column Oven:

Temperature range:

- Heating mode: 10~85°C

- Cooling mode: 4~35°C

- Smart mode: 4~85°C

Power Supply: 110~220V, 50/60Hz, 1400W

Dimensions (LxWxH): 600×540×540mm

Weight: 75kg

STANDARD DELIVERY:

High pressure pump: 1 pc

Auto-sampler: 1 pc

Column oven: 1 pc

Ultraviolet-Visible detector: 1 pc

Solvent bottle tray: 1 pc

Sample cell: 1 pc

Chromatography data workstation: 1 set

Column (5 μm, 4.6×250 mm): 1 pc

Mobile phase solvent bottles: 2 pcs

Computer: 1 pc

Consumables and spare parts: 1 set*

*Including common consumable tools such as connecting pipes and pipe joints
