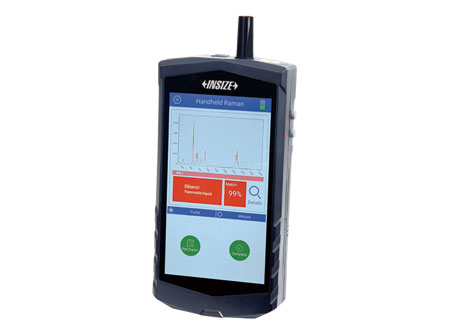

INSIZE HHL-R240 Handheld Raman Spectrometer (785±0.5nm)

Specification

Operative system:Android

Excitation wavelength:785±0.5nm

Wavenumber range:200-4000cm⁻¹

Resolution:10cm⁻¹

Touch panel:5.5", 1920×1080, Multi-Touch

Communication Interface: USB type-CUSB type-C

Report output:Supports export of multi-information test reports (test results, mapping information, photo forensics, etc.)

Work hours:4-6h

Charge method:USB type-C

Operation temperature:-20-50°C

Dimension:172×85×30mm

Weight:500g

Standard Delivery:

Main unit:1 pc

Power cable:1 pc

Solid probe:1 pc

Liquid cuvette:1 pc

Fields of application:

Drugs: heroin, virus, cocaine, ketamine, etc.

Predisposition to manufacture: ephedrine, trichloromethane, ether, etc.

Explosives: TNT, RDX, TATP, ammonium nitrate, etc.

Hazardous chemicals: sulphuric acid, petrol, nitric acid, toluene, etc.

Food and Drugs: Pesticide Residues, Illegal Additives, Pharmaceutical Excipients, etc. Jewellery: diamonds, onyx, jade, etc.

■ One-touch operation, non-destructive, fast detection and identification

■ Professional Raman spectral recognition algorithm with built-in standard spectral library of up to 20,000 substances, support for the detection of mixtures, support for the user to build their own spectral data

■ 5.5" high definition screen, double cameras of 13-mega plus 8-mega taking evidence pictures in the field

■ Host support WIFI, Bluetooth function, test results support export PDF reports

■ Ultra-light weight, suitable for one-handed operation, easy to carry, built-in lithium battery,

■ 4-6 hours of long battery life
