Standard Delivery

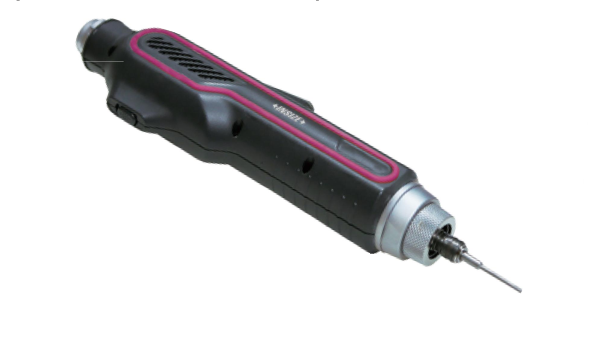

Electric screwdriver: 1pc
Controller: 1pc
Cross screwdriver: 1pc
Tool connection cable: 1pc
USB transmission cable: 1pc
Specification
Code: HES-E152
Torque range: 0.06~0.55N.m
Motor power: DC15W
Max. speed: 1200rpm
Applicable screw outside diameter: 1.4~2.5mm
Applicable screwdriver head: Ø4mm tail deficient
Controller: type A
Power Supply: AC 85~264V, 47~63HZ
Display operation interface: touch screen menu operation mode, 3 function buttons+3 LED indicators
Torque accuracy: ± 5% at 30% ~ 80% of maximum output torque, ± 8% in other range
Dimension:
electric screwdriver: 242x53x35mm
Controller: 151.5x185.8x221mm
Weight:
electric screwdriver: 300g
controller: 3500g
■ Highly efficient heat dissipation setting, ultra-low noise handling
■ Permanent magnet synchronous servo motor and high-precision reducer power transmission mechanism
■ High-precision angle sensor (resolution 1°) and two-color LED indication of locking status
■The safety level conforms to the relevant provisions of GB3883/IEC60745 and other standards
■ 12 task modes, each task can be configured with 8 different torque parameters
■ Locked data is stored in EXCEL on the hard disk for 600 days
■ Built-in servo drive for precise control of torque, angle and speed
■ Provide graphical tool for process optimization and diagnostic
■ Provide programmable IO and RS485 communication port for process control and data transmission
■ Physical buttons for assisted operation and they are monitored by LED lights
Datasheet
