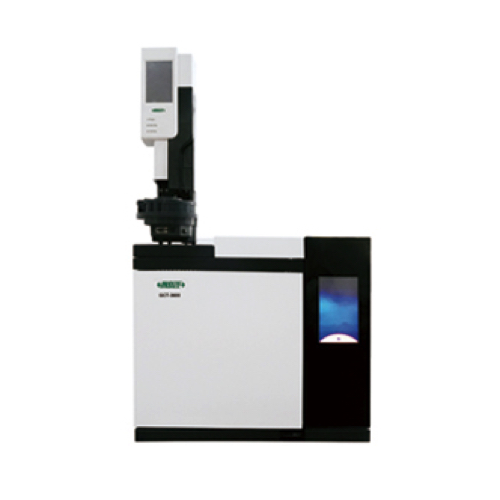

INSIZE GCT-3600 Gas Chromatography (Advanced Type) (0-100 Psi, 0-1000 mL/min)

Analysis material: hydrocarbons, carbonaceous organic matter (COC), volatile organic compound (VOCs), etc.

Control System:

Temperature control area: 8 signals

Temperature control range: above room temperature 4-450°C, incremental 1°C, accuracy: ±0.1°C

Program temperature rise rate: 0.1-120°C/min

Air circuit control: full electronic pressure flow control

Measurement range: 0-100 Psi (pressure), 0-1000 mL/min (flow rate)

Resolution: 0-0.1 Psi (pressure), 0-1 mL/min (flow rate)

External control: 8 signals, auxiliary control output 2 signals

Program temperature rise step: 16 steps

Detector:

Type: hydrogen flame ionization detector (FID)

Detection limit: ≤3×10⁻¹² g/S (n-hexadecane)

Baseline noise: ≤1×10⁻¹⁴ A (after 2 hours of instrument stabilization)

Baseline drift: ≤1×10⁻¹³ A/30min (after 2 hours of instrument stabilization)

Auto-sampler:

Carrier gas: N₂≥99.999%

Natural gas: H₂≥99.999%

Combustion gas: dry oil-free air

Syringe specifications: 1, 5, 10, 25, 50, 100, 250, 500 µL

Vial position: 24 bits (customizable expansion to 160 bits)

Solvent bottle position: 2 bits (customizable expansion to 11 bits)

Vial volume: 2 mL

Injection volume: 0.1-250 µL

Feed rate: fast, slow, user-defined

Feed mode: general, continuous, PTV, user-defined

Gas supply:

Carrier gas: N₂≥99.999%

Natural gas: H₂≥99.999%

Combustion gas: dry oil-free air

Data processing:

• can simultaneously process data from up to 5000 chromatographs

• can automatically generate chromatograph files

• can name chromatograph folders by time and shift sequence

Communication interface: ethernet: IEEE802.3

Working environment: 15-30°C, ≤85% RH

Power supply: AC 220V, 50 Hz, 3 kW

Dimension (L×W×H): 560×530×480 mm

Weight: 60 kg

STANDARD DELIVERY:

Main unit: 1 pc

Auto-sampler: 1 pc

Computer: 1 pc

Software: 1 pc

Detector (FID): 1 pc

Hydrogen generator: 1 pc

Air generator: 1 pc

Gas purifier: 1 pc

Column (SE-54): 1 pc

Consumable and spare parts: 1 set*

*Including injection needles, injection pads, graphite pads, gas connection lines, and other common consumables and tools
