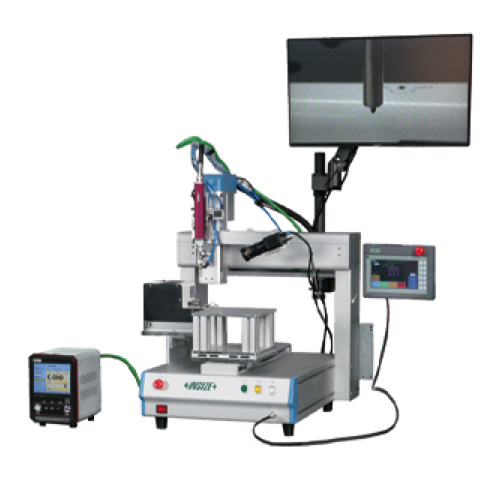

INSIZE ATM Desktop Automatic Tightening Machine

Working Platform:

Working Direction: Vertically down

Max. Operating Speed:

XY-axis: 800mm/s

Z-axis: 400mm/s

Max. Load:

XY-axis: 10kg

Z-axis: 5kg

Positioning Repeatability: ±0.05mm

Control Axis: XYZ axis

Number of Preset Positioning Programs: 80

Number of Positioning Points for One Program: 350

Number of I/O Ports: 4 input, 4 output

Intelligent Electric Screwdriver*:

Applicable Torque Range: 0.01~7.50N.m

Applicable Screw Outside Diameter: 1.0~7.0mm

Torque Accuracy:

±5% at 30%~80% of maximum output torque

±8% in other range

Resolution of Angle: 1°

Number of Preset Tightening Programs: 12

Number of Preset Callable Parameters: 8

Number of I/O Ports: 8 input, 8 output

Power Supply: AC 220V, 50Hz

Pressure Supply: 0.5~0.7Mpa

Environmental Requirement: Temperature 0~40°C, Relative Humidity 20~85%

*Intelligent screwdrivers are available with different torque ranges for various tightening screws.

STANDARD DELIVERY

Working Platform: 1 set

Intelligent Electric Screwdriver: 1 set

Screw Feeding System: 1 set

Camera-Assisted Positioning System: 1 set

Control Program Main Unit: 1 set

Positioning Control Box: 1 set

Positioning Fixture: 1 set

Electric Screwdriver Controller: 1 set

Suitable Screwdriver Head: 1 set
