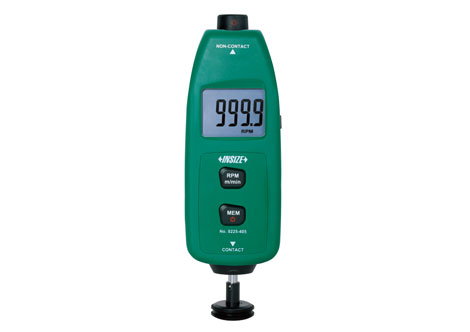

INSIZE 9225-405 Contact/Non-Contact Tachometer (2,5~99999RPM/0,5~19999RPM)

SPECIFICATION

Measuring method: Non-contact/ Contact

Measuring range:

rotary speed: 2.5~99999 RPM/ 0.5~19999 RPM

Line speed: - / 0.05~500 m/min

Resolution:

rotary speed: 0.1 RPM (range 2.5~999.9 RPM) / 0.1 RPM (range 0.5~999.9 RPM)

1 RPM (range 1000~99999 RPM) / 1 RPM (range 1000~19999 RPM)

Line speed: - / 0.01 m/min (range 0.05~99.99 m/min), 0.1 m/min (range 100~500 m/min)

Accuracy:

rotary speed: ±(0.05%n+1d)RPM / ±(0.4%n+1d)RPM (n<300RPM), ±(0.05%n+1d)RPM (n>=300RPM)

Line speed: - / ± (1%+1d)m/min d is resolution

Laser power: Class III, 3mW~4mW / -

Sampling time: 0.6s (above 100 RPM)

Measuring distance: 50~500 mm / -

Operating teamperature: 0~40*C

Power supply: 3xAA batteries

Dimension: 206x71x36mm

Weigh: 170g

Standard deliverry

main unit: 1pc

Reflection sticker: 3 pcs

wheel with 0.1m perimeter: 1pc

Clamping sleeve: 1pc

Cone head: 1pc

Small cone head: 1pc

Cone cavity head: 1pc

Battery (AA): 3 pcs
