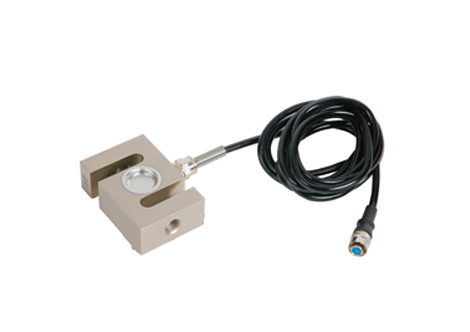

SPECIFICATION
Maximum range: 30kN/3T
A: M18x1.5mm
B: 25.4mm
C: 76.2mm
D: 108mm
Output sensitivity: 2.0±10%mV/V
Zero output: ±1%F.S.
Non-Linearity: ±0.03%F.S.
Hysteresis: ±0.03%F.S.
Repeatability: ±0.03%F.S.
Creep (30 minutes): ±0.03%F.S.
Temperature sensitivity drift: ±0.03%F.S./10°C
Zero temperature drift: ±0.05%F.S./10°C
Response frequency:10kHz
Material: alloy steel
Electrical impedance: 350Ω
Insulation impedance: ≥5000MQ/100VDC
Operating voltage: 5-15V
Working temperature: -20~80°C
Safety overload: 150%
Extreme overload: 200%
Cable specification: Ø5mm: ≤1T, 2m; >1T, 5m
Extreme cable pulling force: 10kg
■ Characteristic: Bi-directional tension and compression, compact structure high comprehensive precision, good long-term stability and nickel plating on the surface of high-quality alloy steel
■ Application fields: Universal material testing machine, hopper scale, hook scale, packaging scale, belt scale, plug-in force tester and other tension and pressure testing instruments as well as automation equipment
