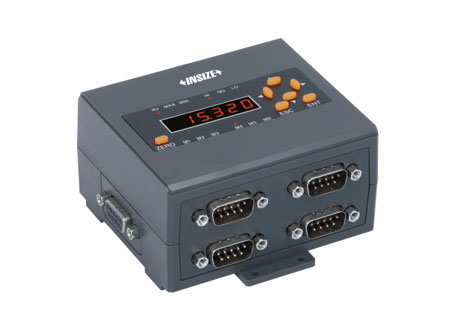

INSIZE 7133-1 Multichannel display units (6 chữ số)

Code:7133-1

Display:6 digits

Quantity of linear gauges or digital indicators to be connected: 4 pcs4pcs

Toleranceset tolerance and make judgment with lights (out of tolerance, within tolerance)

Output control:output the tolerance judgment (out of tolerance, within tolerance) to control outside devices

Outside control:control the display units from outside (set zero, hold reading and collect data)

Data output:connect to computer software and serial communication

Power supply:DC 9-24V

Connection Box (optional) specification

Code: 7133-2

Quantity of linear gauges or digital indicators to be connected: 4 pcs

■ Can be connected with 7107-11, 7107-12, 7107-11V or 7107-12V linear gauges, can also be connected with digital indicators (data cable 7309-C01M is needed)

■ To connect more than 4 linear gauges or digital indicators, need to purchase the connection box (code: 7133-2), and one display unit can be connected with up to 14 connection boxes

■ Set tolerance and make judgment (out of tolerance, within tolerance), output the judgment to control outside devices, control from outside (set zero, hold reading and collect data)

■ Software of display unit (included): in the software, it is possible to set tolerance and show judgment (red when out of tolerance, green when within tolerance), set zero, collect data manually or automatically (time is adjustable), output data to Excel, print report
