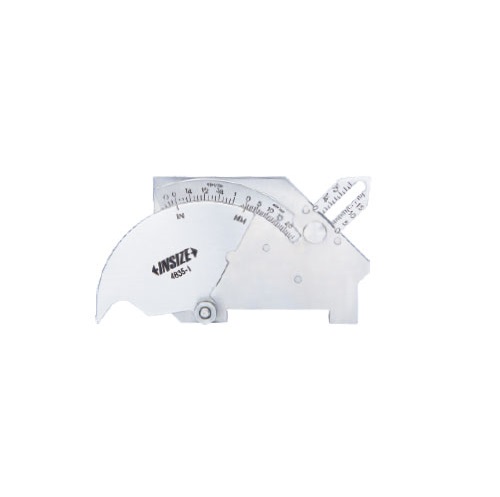

INSIZE 4835-1 Welding Gage

Measurement:

- Crown height

- Fillet weld leg height

- Misalignment (high-low)

- Undercut depth

- Fillet weld throat size

- Angle of preparation

- Length

- 45° angle

Range: 0-25nmm (0-1")

0-25nmm (0-1")

0-25nmm (0-1")

0-2mm (0-1/8")

0-20mm (0-3/4")

0-60°

0-60mm (0-2")

—

Graduation: 1mm(1/16")

1mm(1/16")

1mm(1/16")

1mm(1/16")

1mm(1/16")

5°

1mm(1/16")

—

Accuracy: ±0.5mm

±0.5mm

±0.5mm

±0.5mm

±0.5mm

±1°

±0.5mm

±1°

Adjustable scale to compensate pointer wear

Made of stainless steel

Datasheet
