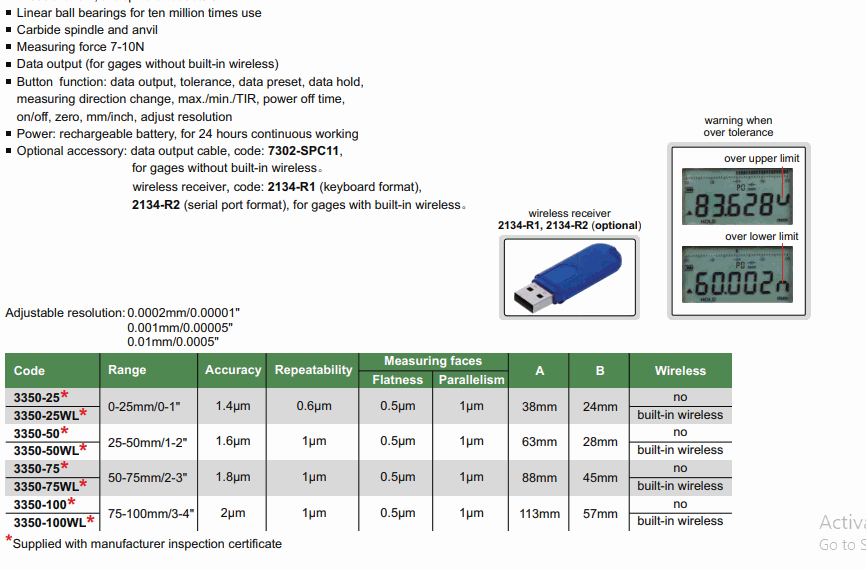

Range: 50-75mm/2-3”
Accuracy: 1.8µm
Repeatability: 1µm
Measuring faces flatness: 0.5µm
Measuring faces parallelism: 1µm
A: 88mm
B: 45mm
Built-in wireless: no
Adjustable resolution:
- 0.0002mm/0.00001”
- 0.001mm/0.00005”
- 0.01mm/0.0005”
Absolutely encoder, the original data remains after power off
One turn of sleeve makes 5mm spindle feed
Press the fork, the spindle retracts 3mm
Linear ball bearings for ten million times use
Carbide spindle and anvil
Measuring force: 7-10N
Data output
Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, zero, mm/inch, adjust resolution
Power: rechargeable battery, for 24 hours continuous working
Optional accessory:
- Data output cable (code 7302-SPC11)
