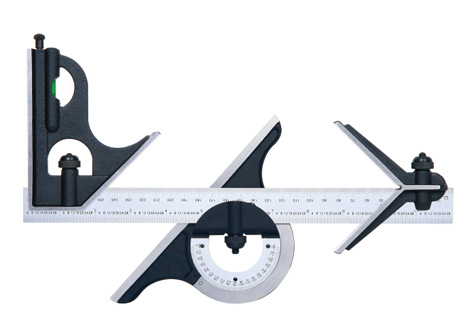

Center head (made of cast iron): to locate center of cylinders with diameter (0d): 30-100mm
Accuracy: ±0.15mm
Protractor head (made of cast iron): set the blade at desired angle to an edge of a workpiece, and can be used to measure angles
Range: 0-180°
Accuracy: ±20min.
Square head (made of cast iron): set the blade at 90° or 45° to an edge of a Workpiece
Accuracy: ±8min for 90° square, ±10min for 45° square
Blade (made of stainless steel):
Range: 300mm/12"
Graduation: 0.5mm and 1/32" on front face, 1mm and 1/64" on back face
