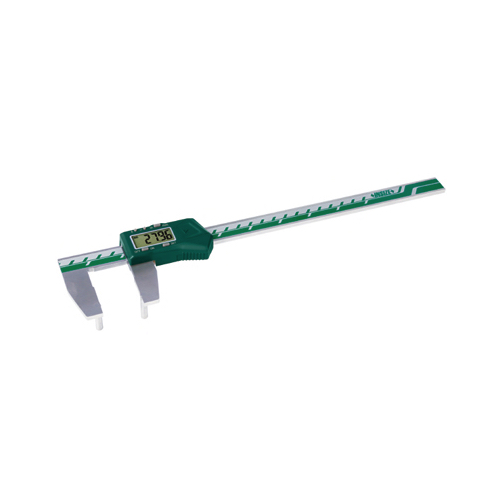

With data interface (optional data output cable: code 7315-25 need receiver, 7302-21)
Measuring Range (ØD*): 10-200mm / 0.4-8"
Diameter of Barrier (Ød): <D-10mm (less than 70mm)
Accuracy: ±0.03mm
*For example:
When measuring size (ØD) is 40mm, D - 10 = 30mm , so the diameter of barrier (Ød) should be less than 30mm. When measuring size (ØD) is 100mm, D - 10 = 90mm , however it should be less than 70mm, so the diameter of barrier(Ød) should be less than 70mm.
