Display: 7 inches, High Brightness TFT LCD, resolution of 800×480
Distance unit: m / km / mile / ft
Dynamic range: 35dB / 33dB (1310nm / 1550nm)
Measurement range (km): 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360km
Measurement range (mile): 0.81, 1.55, 3.11, 6.22, 12.4, 24.8, 49.6, 74.6, 99.4, 223.7mile
Pulse width: 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs
Event dead zone: 0.8m
Attenuation dead zone: 4m
PON dead zone: 40m
Distance accuracy: ±(1m+Distance×2.5×10-5 +Sampling resolution)
Loss scale linearity: ±0.1dB or ±0.05dB / dB
Sampling points: 160,000 points
Splitting ratio: Up to 1:64 splitter
Resolution: 0.04m ~ 10.24m
Battery capacity: Operating Time : Up to 12hours
File format: SOR(Telcordia), BMP, JPG
External connection: USB 2.0
Compatible connector: APC(FC, SC, LC), UPC(FC, SC, LC, ST)
Power supply: AC Input 100-240V, 50-60Hz / DC Input 19V, 3.42A
VFL Distance: Up to 15km
VFL Module: Operating wavelength: 650nm ±10nm, Universal interface: 2.5mm
VFL Output power: 20mW
Light source: Operating wavelength: 1310nm / 1550 nm ±10nm
Light source output power: -5dBm
Optical power meter: Wavelength calibration: 850 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650nm
Power range (OPM): -70 to +6dBm
Accuracy (OPM): 0.01dB
Unit display for OPM: dB, dBm, uW
GENERAL SPECIFICATIONS
Dimension: 7.08H x 10.70W x 2.44D inches 272mm
(180H x 272W x 62D mm, excluding rubber bumper)
Weight: 4.19pounds (1.90kg with battery)
Operating conditions: -10~50℃
Storage conditions: -20~60℃,
Relative humidity: 0~95% (Noncondensing)
PACKAGES:

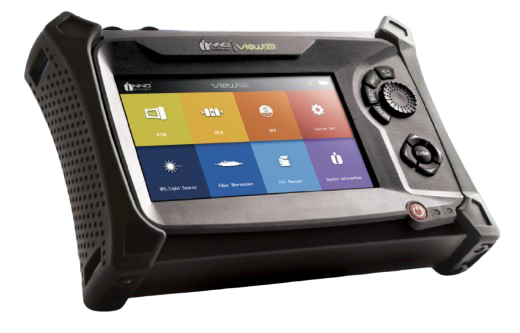

OTDR: VIEW500
Power cable / AC Adapter: ACC-25 / JS-180300
Carrying case: Hard case (Key) / Soft case
Shoulder strap / Touch pen: yes
Calibration certificate: yes
