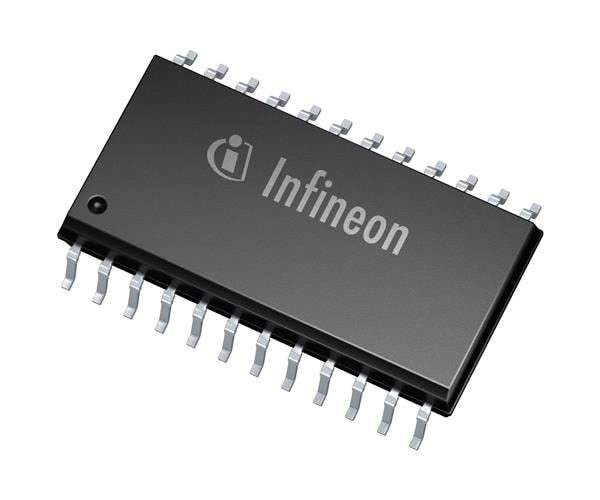

Infineon 6ED2230S12TXUMA1 High-Side, Low-Side 1200V, 0.65A 3-Phase BSD, OCP, EN & FAUL

Shutdown: Shutdown

Fall Time: 20 ns

Rise Time: 35 ns

Logic Type: CMOS

Technology: Si

Unit Weight: 807.300 mg

Configuration: Inverting

Mounting Style: SMD/SMT

Output Current: 650 mA

Number of Drivers: 6 Driver

Number of Outputs: 6 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 20 V

Supply Voltage - Min: 13 V

Pd - Power Dissipation: 1.3 W

Propagation Delay - Max: 900 ns

Operating Supply Current: 175 uA

Maximum Turn-On Delay Time: 600 ns

Maximum Turn-Off Delay Time: 600 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
