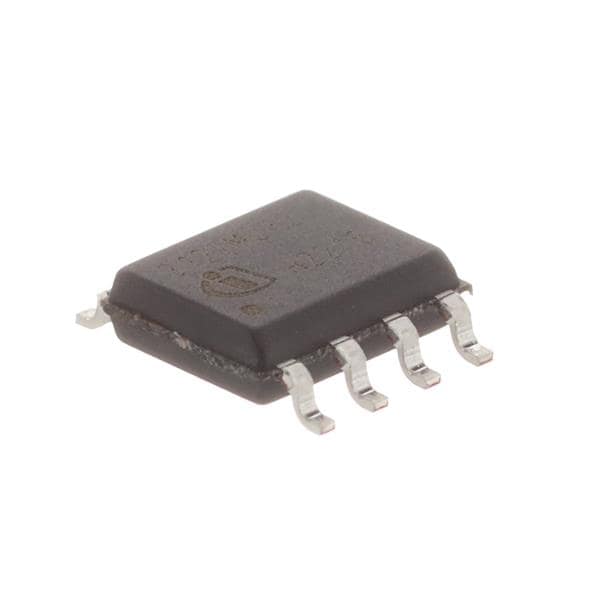

Infineon 1ED3127MU12FXUMA1 Half-Bridge ISOLATED DRIVER

Fall Time: 30 ns

Rise Time: 30 ns

Logic Type: CMOS

Technology: Si

Configuration: Inverting, Non-Inverting

Mounting Style: SMD/SMT

Output Current: 10 A

Output Voltage: 35 V

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 15 V

Input Voltage - Min: 3 V

Supply Voltage - Max: 15 V

Supply Voltage - Min: 3.1 V

Pd - Power Dissipation: 500 mW

Propagation Delay - Max: 14 ns

Operating Supply Current: 1.1 mA

Maximum Turn-On Delay Time: 100 ns

Maximum Turn-Off Delay Time: 100 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 850 mOhms
