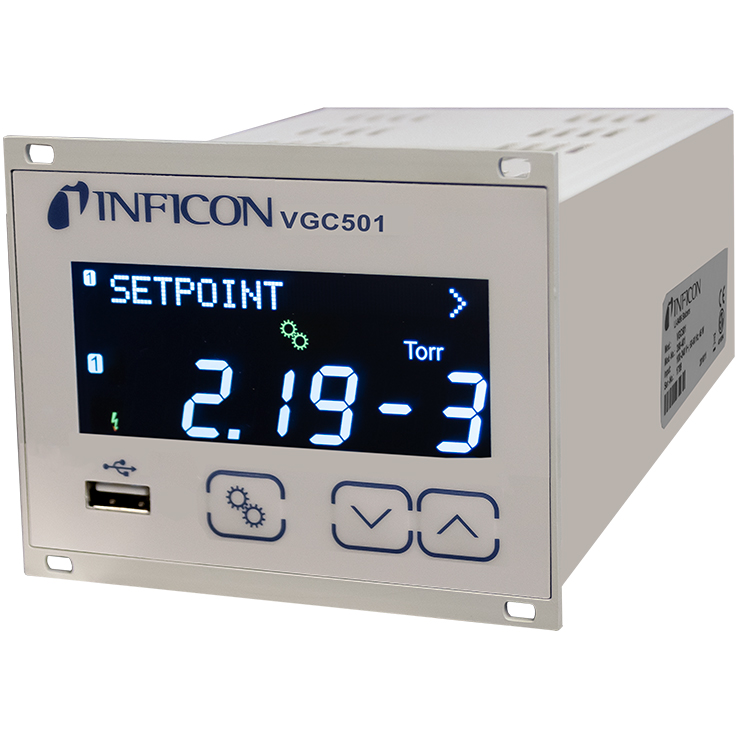

INFICON VGC501 Vacuum Gauge Controller

Measurement channels: 1

Display: LCD, LED backlight

Rate 1/s: 10

Connectable gauges with display range

CDG (A/D) Torr: 1×10^-3×F.S. …1×F.S.

PCG (mbar): 5×10^-4…1500

PSG (mbar): 5×10^-4…1000

MPG (mbar): 1×10^-9…1000

PEG (mbar): 1×10^-9…1×10^-2

MAG (mbar): 1×10^-9…1×10^-2

BCG (mbar): 5×10^-10…1500

BPG (mbar): 5×10^-10…1000

HPG (mbar): 2×10^-6…1000

Measurement unit (selectable): mbar, Torr, Pa, hPa, Micron, V

Setpoints

Setpoint relays: 2

Channel assignment: 1

Adjustment range: sensor dependent

Hysteresis: adjustable

Relay contact: floating changeover contact

Setpoints Contact rating:

V (ac) • A: 30 / 1

V (dc) • A: 60 / 0.5

Connector: D-sub, 15-pin, male

Analog output Range V: 0 ... 10.3, sensor analog output signal

Analog output: 1

Programmable analog output: -

Connector: D-Sub, 15-pin, male

Interface (digital) Connector: USB slave, master and Ethernet, USB Typ A (stick), USB Type B, FCC68/RJ45

Power Supply V (ac): 100 ... 240

Frequency Hz: 50 ... 60

Consumption W: ≤45

Operation temperature (ambiance): +5 ... +50°C
