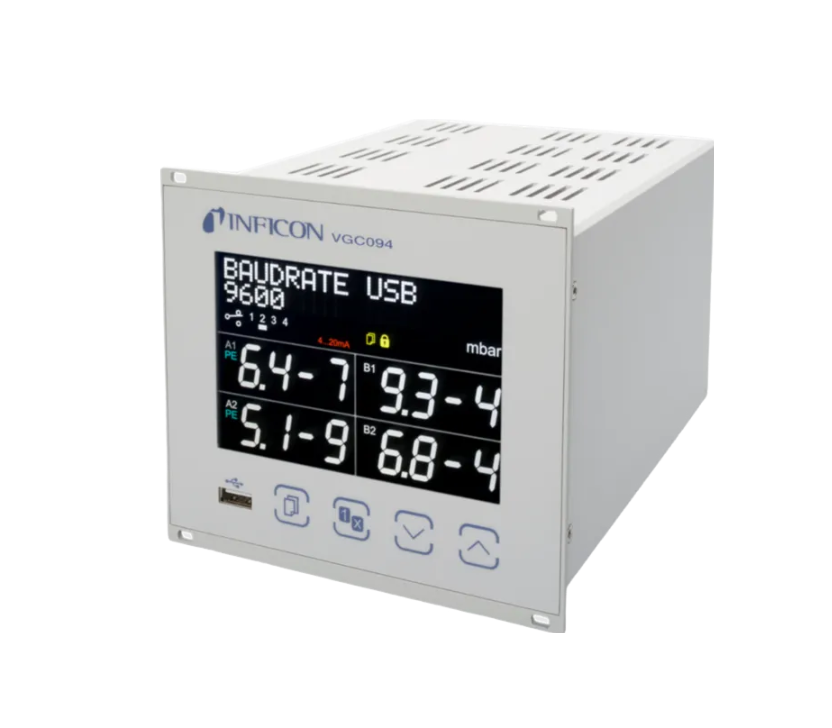

INFICON VGC094 Vacuum Gauge Controller (1 x 10^-11 ... 1000 mbar)

Measurement channel: 4

Display: LCD, LED backlight

Measurement rate: 100 s^-1

Display rate: 10 s^-1

Measurement range: 1 x 10^-11 ... 1000 mbar

Measurement unit (selectable): mbar, Torr, hPa, Micron, V

Slots for plug-in boards: 2 measurement boards; 1 interface board

Setpoint relays: 4

Error relay: 1

Channel assignement: freely assignable

Adjustment range: sensor dependent

Hysteresis: adjustable

Rely contact: floating changeover contact

Contact rating: 30 V (ac) / 1.5 A; 30 V (dc) / 1.5 A

Connector: D-sub, 25-pin, female

Analog output: 4

Range: 0 ... 10 V / 4 ... 20 mA

Interface (digital): USB slave, master, RS485, Ethernet, USB Type A (flash drive), USB Type B, M12 5-pin FCC68/RJ45

Power supply: 100 ... 240 V (ac)

Frequency: 50 ... 60 Hz

Operation temperature: +5 ... +50°C
