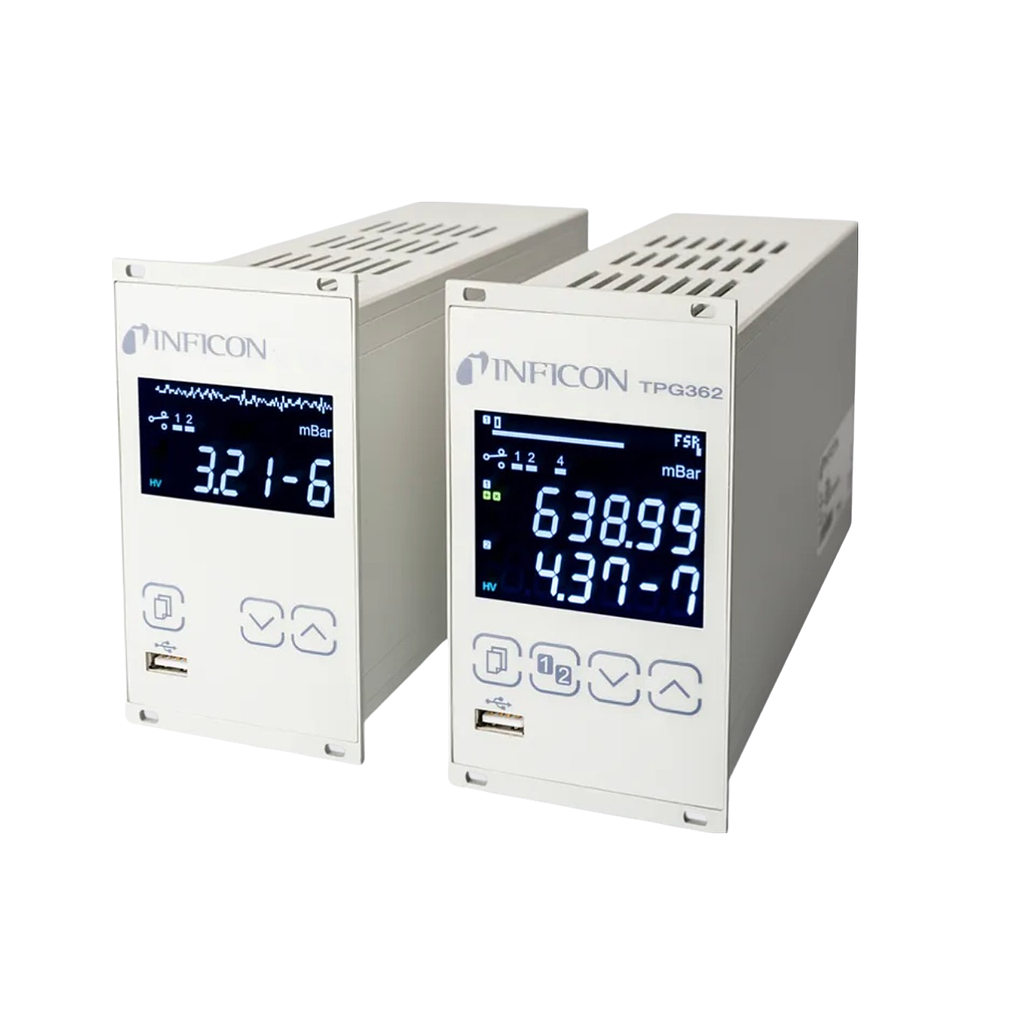

INFICON TPG362 Vacuum Gauge Controller

Measurement channels: 2

Display: LCD, LED backlight

Rate 1/s: 10

Connectable gauges with display range

CMR (A/D) : 1 × 10^-3 × FS ... 1 × FS mbar / Torr

PCR: 5 × 10^-4 ... 1500 mbar / 3.75 × 10^-4 ... 1125 Torr

TPR: 5 × 10^-4 ... 1000 mbar / 3.75 × 10^-4 ... 750 Torr

PKR: 1 × 10^-9 ... 1000 mbar / 7.5 × 10^-10 ... 750 Torr

IKR: 1 × 10^-9 ... 1 × 10^-2 mbar / 7.5 × 10^-10 ... 7.5 × 10^-3 Torr

APR: 0.1 ... 55000 mbar / 7.5 × 10^-2 ... 4.125 × 10^4Torr

PBR: 5 × 10^-10 ... 1000 mbar / 3.75 × 10^-10 ... 750 Torr

IMR: 2 × 10^-6 ... 1000 mbar / 1.5 × 10^-6 ... 750 Torr

Measurement unit (selectable): mbar, Torr, Pa, hPa, Micron, V

Setpoints

Setpoint relays: 4

Channel assignment: 1 or 2

Adjustment range: sensor dependent

Hysteresis: adjustable

Relay contact: floating changeover contact

Contact rating V (ac) / A: 30 / 1

Contact rating V (dc) / A: 60 / 0.5

Connector: D-sub, 15-pin, female

Analog output

Range V: 0 ... 10.3, sensor analog output signal

Analog output: 2

Connector: Amphenol C91B, 7‑pin, female

Interface (digital): USB slave, master, Ethernet and RS485

Connector: USB Type A (stick), USB Type B, FCC68/RJ45, Binder M12

Power Supply V (ac): 100 ... 240

Frequency Hz: 50 ... 60

Consumption W: ≤65

Operation temperature (ambiance) °C: +5 ... +50
