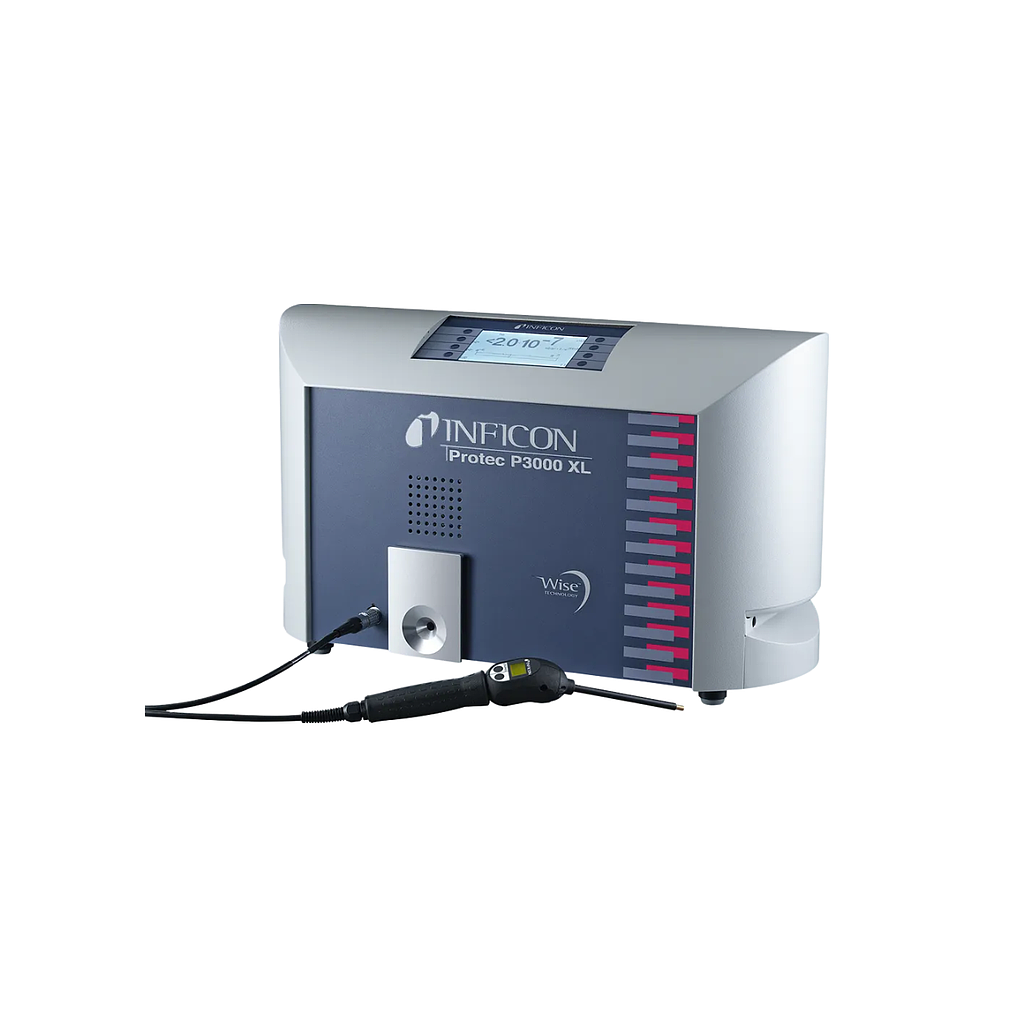

INFICON Protec P3000XL Helium Leak Detector

Minimum detectable leak rate: 1x10-6 mbarl/s @ 3000 sccm; 1x10-7 mbarl/s @ 300 sccm

Measurement range: 4 decades @ 3000 sccm; 5 decades @ 300 sccm

Sensor response time: 450 ms

Response time including sniffer line: < 0.7 s

Leak rate units: mbar l/s; Pa m3/s; ppm

Leak rate units for refrigerant equivalents: g/a; oz/yr; lb/yr

Run-up time: approx. 5 min

Dimensions (width x depth x height): 610 x 265 x 370 mm

Weight: 27kg

Gas flow: 300/3000 sccm

Ambient temperature: 10-45 °C
