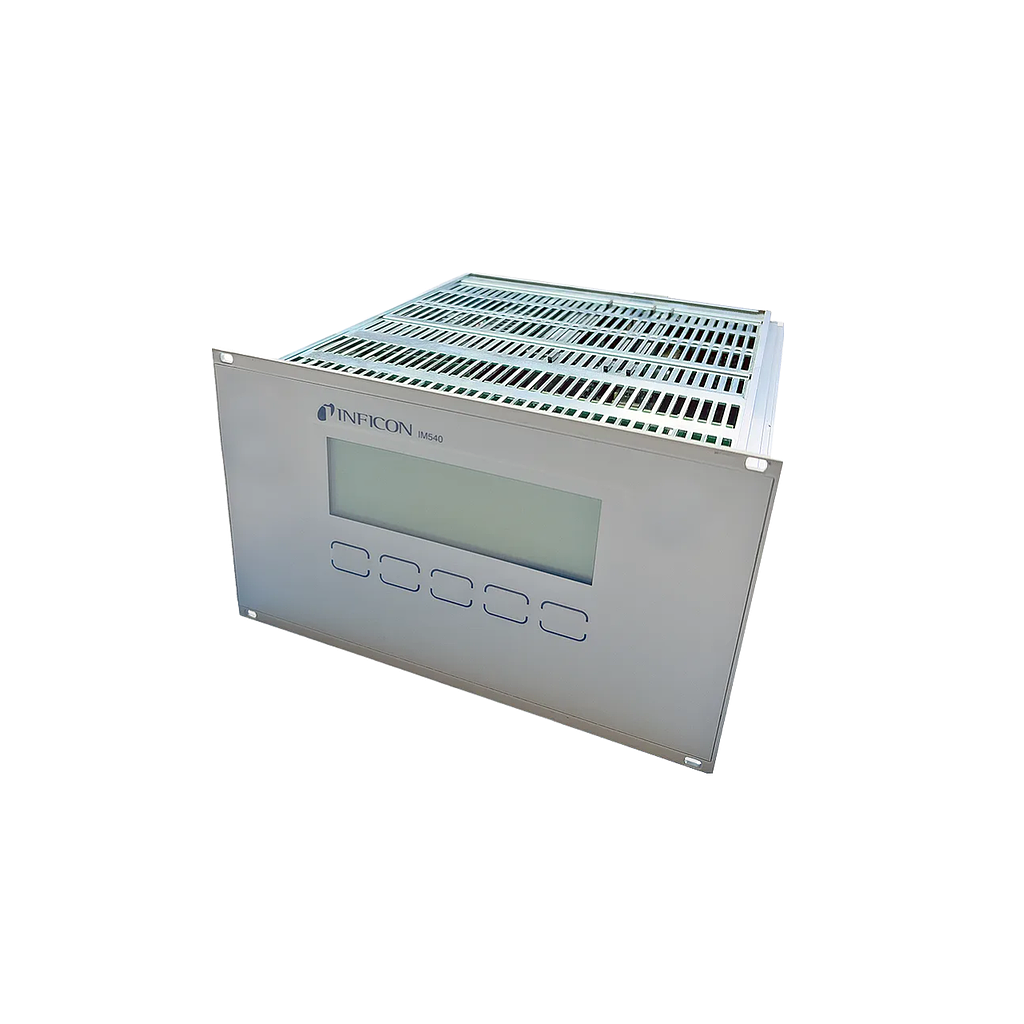

INFICON IM540 Vacuum Gauge Controller (1 x 10-12 ... 1100 mbar)

Measurement channel: 4

Display: LCD, LED backlight

Display rate: 4s^-1

Measurement range: 1 x 10-12 ... 1100 mbar

Measurement unit (selectable): mbar, Torr, Pa, hPa, Micron, V

Measurement range switching: automatic or decade pre-select

Chart recorder outputs: logarithmic 0 to 10 V (1 V / dec) or linear 0 to 10 V

Interface: RS232C, PROFIBUS (with IF540P)

Switching thresholds (single operation or interval): 2 with floating changover contact

Power supply: 90 ... 264 V (ac)

Frequency: 47 ... 63 Hz

Operation temperature: +5 ... +40°C
