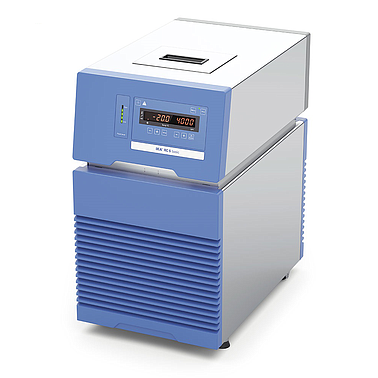

IKA RC 5 basic (0004181000) Temperature Control

Appliance type: Recirculating chiller

Cooling agent: R290

Cooling agent quantity: 90 g

Cooling agent pressure max.: 21 bar

Cooling capacity (@20°C): 1400 W

Cooling capacity (@10°C): 1200 W

Cooling capacity (@0°C): 950 W

Cooling capacity (@-10°C): 650 W

Cooling capacity (@-20°C): 450 W

Cooling capacity (@-30°C): 200 W

Working temperature: -30 - room temp. °C

Operating temperature min.: -30 °C

Operating temperature max. (with external heating): 80 °C

Temperature display: yes

Temperature control: PT 100

Working temperature sensor: PT 100

Working temperature display: LED

Temperature stability DIN 12876: 0.2 ±K

Display resolution: 0.1 K

Warning function optical: yes

Warning function acoustic: yes

Warning function excess temperature: yes

Sub-level protection: yes

Filling volume: 1.4 - 4.0 l

Pump type: Pressure- / suction pump

Pump capacity adjustable: yes

Pump pressure max. (0 liters discharge flow): 0.61 bar

Pressure pump (suction side) (0 liter flow): 0.45 bar

Flow rate max. (0 bar back pressure): 31 l/min

Pump connection: M16x1

Calibration option: yes

Technical data complies with the standard: DIN 12876

Permissible ON time: 100 %

Dimensions (W x H x D):310 x 546 x 490 mm

Weight: 37.5 kg

Permissible ambient temperature: 5 - 32 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 21

RS 232 interface: yes

USB interface: yes

Voltage: 230 / 100 - 115 V

Frequency: 50/60 Hz

Power input: 1100 W
