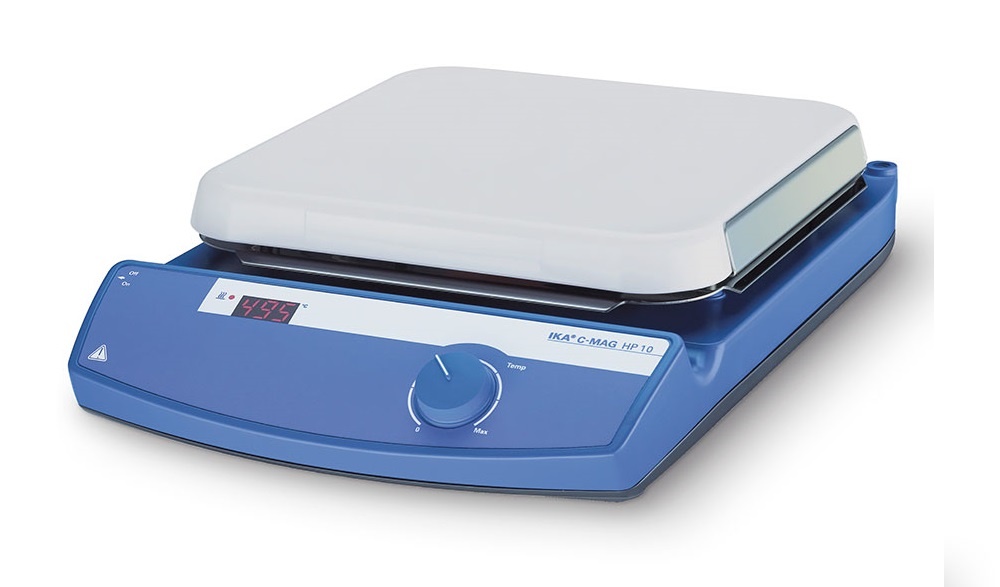

IKA C-MAG HP 10 (0003582000) Hot Plates

Number of heating points: 1

Heat output: 1500 W

Heating temperature range: 50 - 500 °C

Heat control: LED

Connection for ext. temperature sensor: ETS-D5

Volume max.: 15 l

Heating rate heating plate: 5 K/min

Set-up plate material: ceramic

Set-up plate dimensions: 180 x 180 mm

Dimensions (W x H x D): 300 x 105 x 415 mm

Weight: 6 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 21

Voltage: 230 / 120 / 100 V

Frequency: 50/60 Hz

Power input: 1505 W

Datasheet
