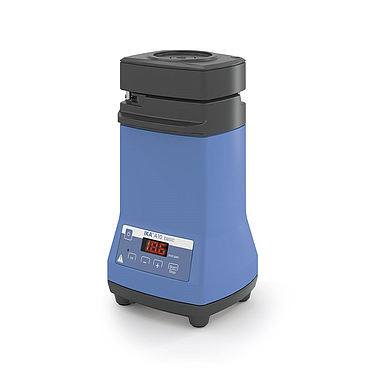

IKA A 10 basic mill (0004180000)

Process type: batch

Operating principle: cutting/impact

Motor rating input: 300 W

Motor rating output: 240 W

Speed max: 25000 rpm

Speed deviation: 500 ±rpm

Circumferential speed max.: 73 m/s

Useable volume max.: 50 ml

Feed hardness max.: 5 Mohs

Feed grain size max.: 6 mm

Material beater/cutter: stainless steel 1.4034

Material milling chamber: stainless steel 1.4301

Power-ON time: 5 min

Power-OFF time: 10 min

Milling chamber, can be cooled with water: yes

Mill feed can be cooled in milling chamber with dry iceyes

Dimensions (W x H x D): 130 x 250 x 145 mm

Weight: 2.9 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity80 %

Protection class according to DIN EN 60529: IP 41

Voltage: 220 - 240 V

Frequency: 50/60 Hz

Power input: 300 W
