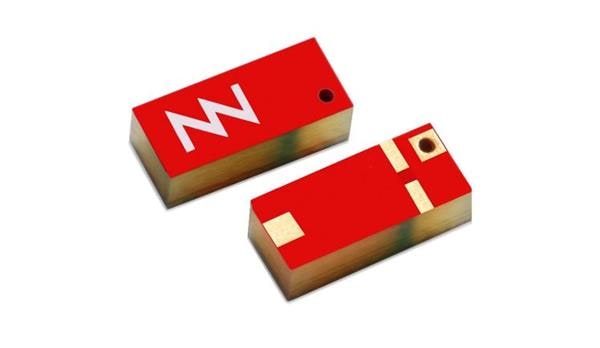

Ignion NN03-320 Passive Antenna 1500-10600MHz

Gain: - 1.1 dBi, - 1 dBi, - 1dBi, - 0.9 dBi, 1.6 dBi, 1.8 dBi, 1.1 dBi, 1.8 dBi, 2.6 dBi, 2.3 dBi, 3.6 dBi

VSWR: 3:1

Style: Rectangular

Width: 3 mm

Height: 1.2 mm

Length: 7 mm

Impedance: 50 Ohms

Application: Tracking Devices, Weareables, Gaming Devices, IoT-5G Modules

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: Monopole

Number of Bands: 10 Band

Center Frequency: 1561 MHz, 1575 Mhz, 1602 MHz, 2450 MHz,3600 MHz, 3950 MHz, 8300 MHz

Mechanical Style: Chip

Maximum Frequency: 10.6 GHz

Minimum Frequency: 1.5 GHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - Sub GHz: IoT

Protocol - GPS, GLONASS: GNSS

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 5G, Cellular (NBIoT, LTE)

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
