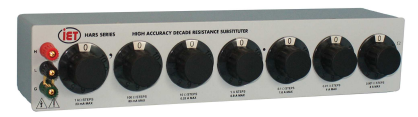

IET LABS HARS-X-6-0.01+ ISO-17025 High Accuracy Decade Resistance Substituter (11.1111kΩ , 0.01Ω, 6 decades, option ISO-17025)

Total resistance: 11.1111 kW

Number of decades: 6

Resolution: 0.01 W

Accuracy:

 ≤1 MΩ decades: ±(0.01% + 2 mΩ)

 10 MΩ decades: ±0.03% after subtraction of zero resistance, at 23°C; traceable to SI

 Zero resistance:

 ≤1 MΩ decades: <1 mΩ per decade at dc

 10 MΩ decade: ≈3 mΩ at dc

 Max voltage to case:

 2000 V peak

 Environmental conditions:

 Operating: 10°C to 40°C; <80% RH

 Storage: -40°C to 70°C

 Switches:

 Continuous rotation

 11 positions marked "0"-"10"

 Multiple solid silver-alloy contacts

Switch capacitance:

 <1 pF between contacts

 Terminals: 3 terminals, High, Low, and GND via gold-plated, 5-way, tellurium-copper binding posts with low thermal emf and low resistance.

-K option with 5 terminals for Kelvin connection is available as an option to reduce zero resistance.

-K option is not available for 1 decade housing.

-RO Rear outputs are available as an option
