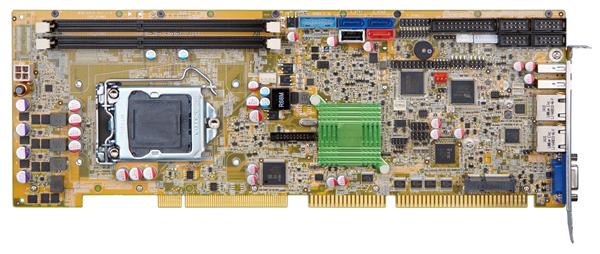

IEI Technology WSB-H810-R10 Single Board Computers Full-size PICMG 1.0 CPU card supports LGA1150 Intel Core i7/i5/i3, Pentium and Celeron CPU per Intel H81, DDR3, VGA/iDP, Dual Intel GbE, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA, RS-232, HD Audio and RoHS

Core: Celeron, Core i3/i5/i7, Pentium

Chipsets: H81

Frequency: 3.9 GHz

Dimensions: 338 mm x 122 mm

Form Factor: PICMG 1.0

Memory Type: DDR3/DDR3L

Unit Weight: 1 kg

Installed RAM: 0 GB

Interface Type: Audio, DP, DVI, Ethernet, HDMI, I2C, iDP, LVDS, mPCIe, mSATA, PCIe, PS/2, RS-232/422/485, SATA, USB 2.0, USB 3.0, VGA

Processor Type: Celeron, Core i3/i5/i7, Pentium

Processor Brand: Intel

Description/Function: Full size PICMG 1.0 CPU card supports LGA1150 Intel Core i7/i5/i3, Pentium and Celeron CPU per Intel H81, DDR3, VGA/iDP, dual Intel GbE, USB 3.0, SATA 5 Gb/s, PCIe Mini, mSATA, RS-232, HD audio and RoHS

Maximum RAM Capacity: 16 GB

Battery Backup Switching: No Backup Battery

Operating Supply Voltage: 5 V, 12 V

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C
