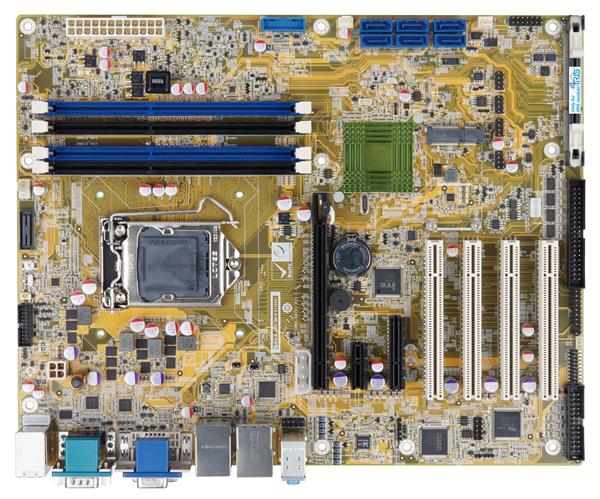

IEI Technology IMBA-Q870-i2-R10 Single Board Computers ATX Motherboard supports 22nm LGA1150 Intel Core i7/i5/i3/Pentium and Celeron CPU per Intel Q87,DDR3,Three Independent Displays VGA/DVI-D/HDMI/iDP,Dual Intel GbE,USB 3.0,SATA 6Gb/s, Audio, iRIS-2400 and RoHS

Core: Celeron, Core i3/i5/i7, Pentium

Chipsets: Q87

Frequency: 3.9 GHz

Dimensions: 305 mm x 244 mm

Form Factor: ATX

Memory Type: DDR3, DDR3L

Unit Weight: 1.416 kg

Installed RAM: 0 GB

Interface Type: Audio, DVI-D, Ethernet, HDMI, I2C, iDP, LPT, PCI, PCIe, PS/2, RS-232/422/485, SATA, SMBus, USB 2.0, USB 3.2, VGA

Processor Type: Celeron, Core i3/i5/i7, Pentium

Processor Brand: Intel

Description/Function: ATX motherboard supports 22 nm LGA1150 Intel Core i7/i5/i3, Pentium and Celeron central processing unit

Maximum RAM Capacity: 32 GB

Battery Backup Switching: No Backup Battery

Operating Supply Voltage: 3.3 V, 5 V, 12 V

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C
