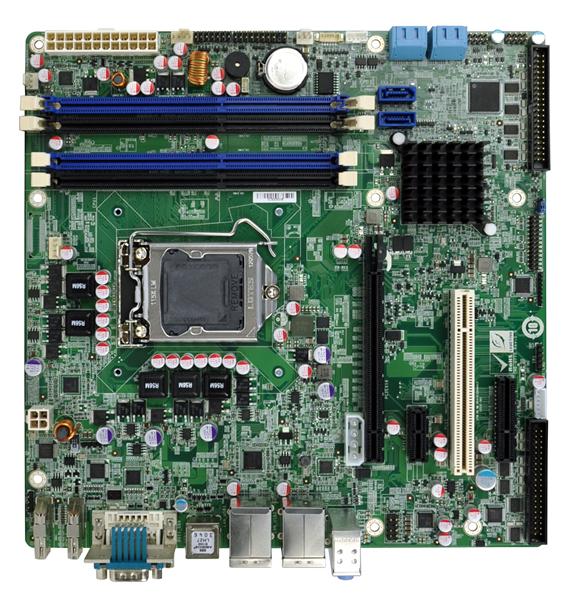

IEI Technology IMB-Q770-R10 Single Board Computers ATX Motherboard supports 14nm LGA1151 Intel Xeon E3 v5,Core i3, Pentium , Celeron per Intel C236, DDR4, triple Independent displays VGA/DVI-D/ HDMI 2.0,Dual Intel GbE, USB 3.0, SATA 6Gb/s, HD Audio, IPMI2.0 and RoHS
ManufacturerIEI Technology(View more products from this manufacturer)
ModelIMB-Q770-R10
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Core: Core i3/i5/i7
Chipsets: Q77
Dimensions: 244 mm x 244 mm
Form Factor: Micro-ATX
Memory Type: DDR3
Installed RAM: 0 GB
Processor Type: Core i3/i5/i7
Processor Brand: Intel
Description/Function: MicroATX motherboard supports 22 nm LGA1155 Intel Core i7/i5/i3 CPU
Maximum RAM Capacity: 32 GB
Battery Backup Switching: No Backup Battery
Operating Supply Voltage: 3.3 V, 5 V, 12 V
Maximum Operating Temperature: + 60 C
Minimum Operating Temperature: - 10 C
