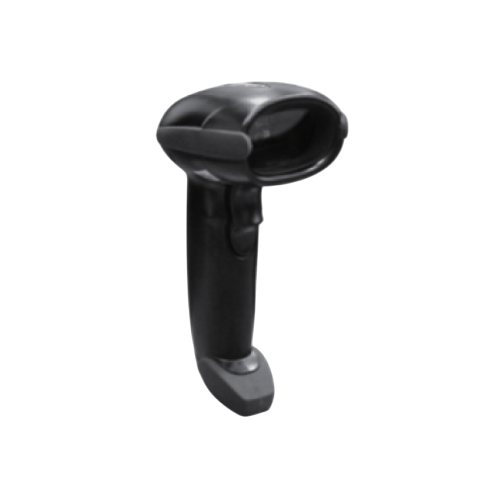

ICW ICW98160N-HD Handheld Barcode Reader (38.5° (H) x 32.5° (V); 360°, ±65°, ±60°)

Dimensions: 16.8 cm H x 10.2 cm L x 7.1 cm W

Weight: 170g

Performance Characteristics

Image (Pixels): 1280 pixels (H) x 1080 pixels (V)

Light Source: Illumination: 4500K LED, Aiming: 617 nm LED

Field of View: 38.5°(H) x 32.5°(V)

Roll / Pitch / Yaw: 360°, ±65°, ±60°

Print Contrast: 25% minimum reflective difference

Motion Tolerance: Up to 5 m/s

Interfaces Supported: USB, RS232

Symbology Decode Capability

1-D: UPC, EAN, Code128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, etc.

2-D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.

User Environment

Operating Temperature: 0° to 50° C

Storage Temperature: -40° to 70° C

Humidity: 5% to 95%, non-condensing

Drop/Shock Specifications: Withstands multiple 1.8m (6ft.) drops to concrete

Ambient Light Immunity: 100000 Lux
