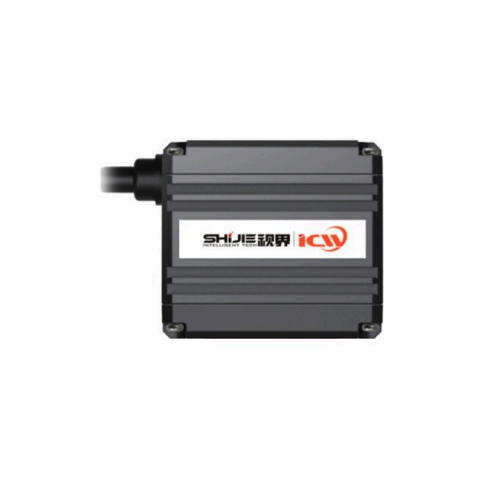

ICW ICW72L Fixed Barcode Reader (30/70/100/150mm; 4mm)

Size: 40 × 36 × 22 (mm)

Weight: 92g

Power supply: 5-36VDC

Power consumption: Peak <2.3W, Average 2W

External input: 1 photoelectric isolation input, can be connected to NPN/PNP/relay

External output: 1 optical isolation output

Image data format: JPEG

Sensor type: Global Shutter CMOS

Reading distance: Fixed 30/70/100/150mm, can support mechanical focusing

Resolution: WVGA 640 × 480

Frame rate: 60 fps

Image color: Mono

Auxiliary light source: Highlight red light source, highlight blue light source, highlight white light source

Lens: 4mm

Interface type: RS232, USB-virtual-COM, USB-keyboard, Ethernet

Motion tolerance: 2m/s

Recognition accuracy: 1D (C128) 2mil, 2D (DataMatrix) 3mil, 1mil = 0.0254mm

Code system:

1D code: Code128, Code93, Code39, Interleaved 2 of 5, Industrial 2 of 5, IAN/EAN/UPC, etc.

2D code: QR, DataMatrix, PDF417, Aztec, etc.

ESD protection: Contact discharge: 8kV, Coupling discharge: 20kV+

Temperature: Operating: 0℃ to 50℃, Storage: -20℃ to 70℃

Humidity: 0% to 90% relative humidity (non-condensing)

IP rating: IP65
