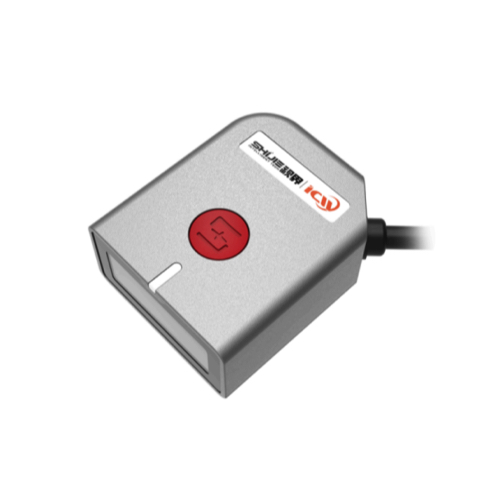

ICW ICW61 Fixed Barcode Reader (22° / 40)

Image Sensor: Global shutter, 640 × 480, 60FPS

Lens angle of view: 22° / 40°

Light source: Highlight red light source, highlight blue light source, highlight white light source

Supported one-dimensional symbologies: Code128, Code93, Code39, Interleaved 2 of 5, Industrial 2 of 5, IAN/EAN/UPC

Supported QR code system: QR, DataMatrix, PDF417, Aztec

Region decoding: Support 8 ROI region decoding

Interface communication: RS232, USB2.0, Ethernet (TCP/DUP/Modbus)

External input: 1 input (photoelectric isolation), can be connected to NPN/PNP/relay

External output: 1 input (photoelectric isolation)

Powered by: 5-36VDC (support USB power supply)

Power consumption: 2.3W max

Reliability:

Temperature range: Working temperature: 0°C ~ 50°C, Storage temperature: -20°C ~ 70°C

ESD protection: Contact discharge: 15kV, Coupling discharge: 20kV+

Shell protection: IP54

Environment brightness: 0–100,000 Lux

Fall: 1.2 meters concrete floor, free fall, 6 sides × 5 times = 30 times

Physical characteristics:

Size: 48mm × 40mm × 22mm (Length × Width × Height)

Weight: 63g

Shell material: PC+ABS

Datasheet
