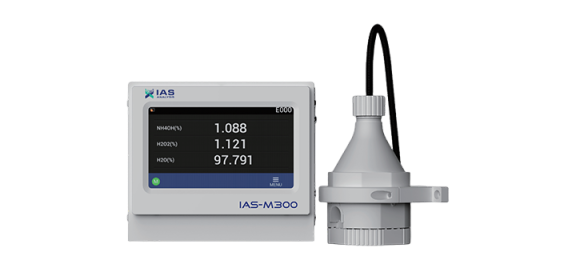

IAS Analysis IAS-M300 Chemical Concentration Monitor (NH₃: 0–2%; H₂O: 15–45%; Fluoride: 0–2%)

Measurement sample: 9058 / 960H

Measurement principle: Spectral Absorption Method

Measurement range:

9058: NH₃: 0–2%, H₂O: 25–45%

960H: Ammonia: 0–2%, H₂O: 15–36%, Fluoride: 0–2%

For additional measurement ranges, contact IAS.

Reproducibility:

9058: NH₃: ±0.25%, H₂O: ±0.3%

960H: Ammonia: ±0.25%, H₂O: ±0.3%, Fluoride: ±0.25%

Chemical pressure: <0.20 MPa

Chemical temperature: 20–45°C

Wetted materials: PFA

Ambient temperature:

Host: 20–30°C

Measurement unit: 20–35°C

Avoid sudden ambient temperature changes (≤±1°C/hour)

Ambient humidity: <70% (non-condensing)

Power supply: 24V DC ±10%, ~20W

Dimensions:

Host: 202 (W) × 272 (D) × 176 (H) mm

Measurement unit: 141 (W) × 110 (D) × 162 (H) mm

Weight:

Host: ~5.9 kg

Measurement unit: ~0.8 kg (customizable according to on-site working conditions)

Connection pipe size:

Chemical path: External piping (3/4 inch)

Gas path: 4 mm O.D. quick-connect plug

Slanting angle at installation:

Host: ±1°

Measurement unit: Ensure chemical flows in from bottom and out from top after connection

Optical fiber:

Fiber length: 10 m

Bending radius: R 200 mm
