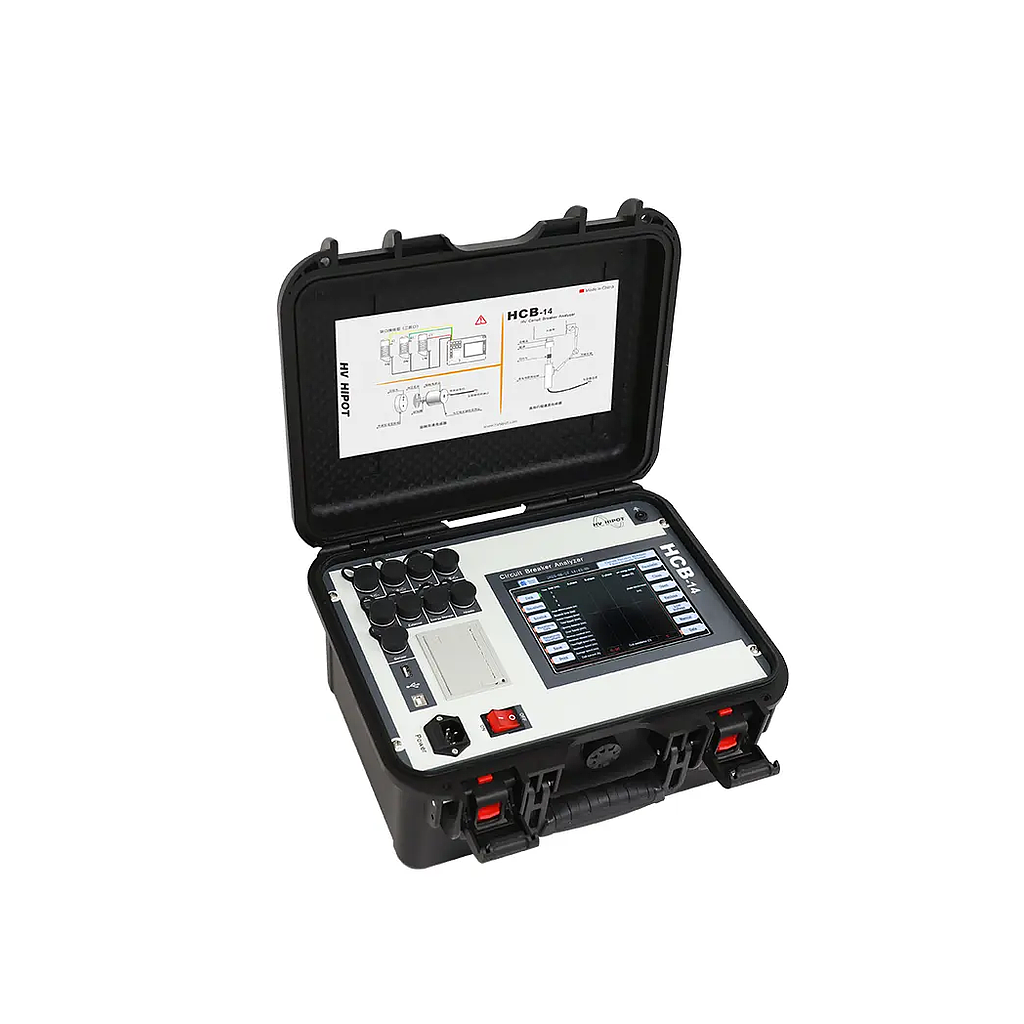

HV HIPOT HCB-14 Circuit Breaker Analyzer

Time

Range: 20000.0ms, Min. Resolution 0.01ms

Error

200 ms/ 0.01ms±0.1ms

2000 ms/ 0.1ms±0.1ms

20000 ms/ 1ms±0.1ms

Velocity

Range: 20.00m/s/ Min. Resolution 0.01m/s

Error:

0~2m/s/ ±0.1m/s±1digital

≥2m/s/ ±0.2m/s±1digital

Travel

Vacuum breaker: 50.0mm/ 0.1mm, error 0.1±1digital

SF6 circuit breaker: 300.0mm/ 1mm, error 0.1±1digital

Oil circuit breaker: 600.0mm/ 1mm, error 0.1±1digital

Current

Max range: 20.00A/ resolution0.01A

Output power: DC0-300V digital adjustable / 20A (instantaneous working), resolution 1V.

Insulation resistance: > 2MΩ

Dielectric strength: Shell can withstand power frequency voltage 1.5kV at 1 minute without flash-over and arcing

Temperature: －10--40℃

Humidity: ≤80%RH

Air Pressure: 86-106kpa

Dimension: 360mm* 280mm* 300mm

Weight: 10kg
