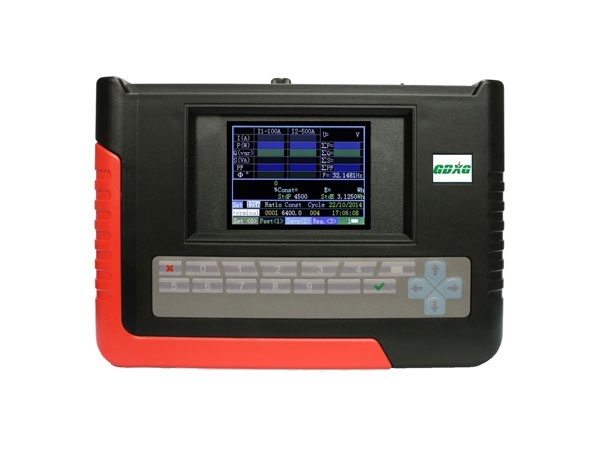

HV HIPOT GDYM-1A Single Phase Electric Energy Meter Calibrator (10-300V; ±0.1%)

Voltage: 10-300V; ±0.1%

Simulation Current: 5A; ±20%

Current Clamp: 100A, 500A; ±0.3%, ±0.5%

Current Terminal: 0.05-10 A; ±0.1%

Power

- Current Clamp: 100A, 500A; ±0.3%, ± 0.5%

- Terminal: 10A; ±0.1%

Phase Angle: -180--+180°; ±0.1°

Frequency: 45-55Hz; ±0.01Hz

Electric Energy

- 100A Clamp(small): 0.25A-110A; ±0.3%, ±0.5%

- 500A Clamp: 25-1000A: ±0.5%

Display Range:

- 100A Current Clamp: 0.01A-110A

- Terminal: 0.01A-10A

Electric Energy Pulse: FL=1000 imp/kW.h

Working Voltage: AC 100 - 300 V

Working Temperature: -25℃～45℃

Working Humidity: <95% No condensation

Weight: <1kg

Volume: 215*105*70mm
