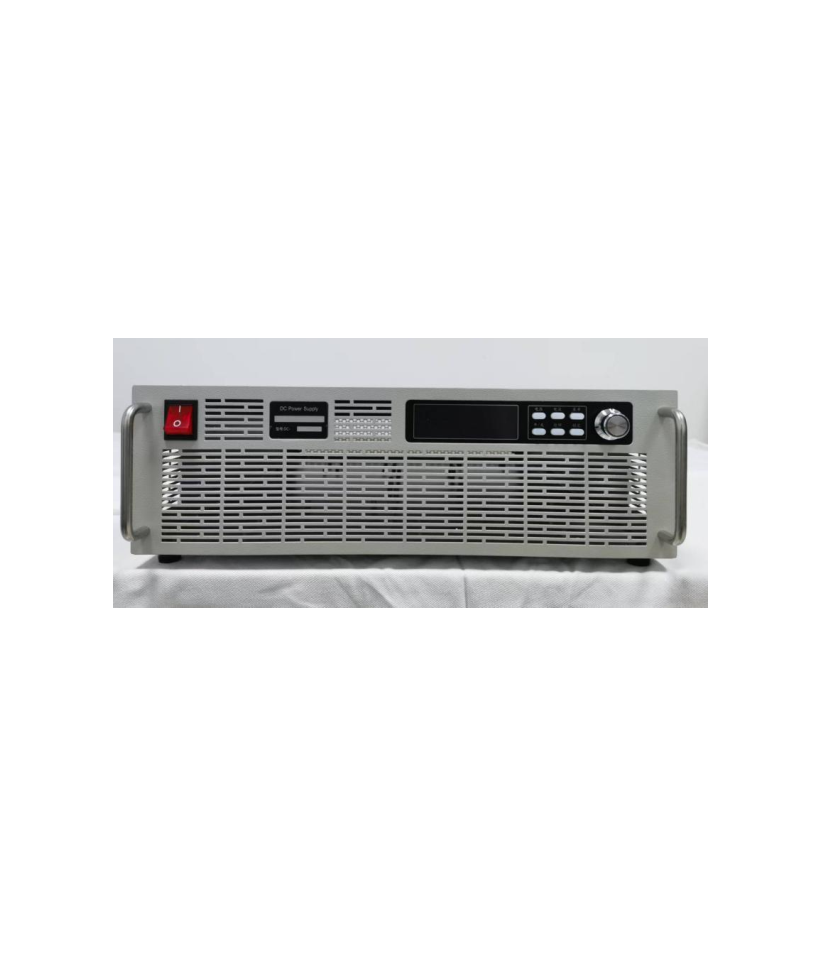

HV HIPOT GDWY-250V/20A Adjustable DC Power Supply (0-250V, 0-20A, 5KW)

Input(AC): Single phase AC220V

Output(DC): 0-250V 0-20A  5KW

Voltage stabilization accuracy

Source effect: ≤0.2% rated value (output voltage change rate caused only by input source voltage change ± 10%)

Time drift: ≤0.2% rated value (only due to the output voltage change rate caused by the power supply working continuously for more than 8 hours)

Load effect: ≤0.2% rated value ± 2 digits (output voltage change rate caused only by the output current changing from zero to the rated value)

Current stabilization accuracy

Source effect: ≤0.1% rated value (output voltage change rate caused only by input source voltage change ± 10%)

Time drift: ≤0.3% rated value (only due to the output voltage change rate caused by the power supply working continuously for more than 8 hours)

Load effect: ≤0.2% rated value ± 2 characters (output current change rate caused only by the output voltage changing from zero to rated value)

Power supply stability: ≦ 0.2%+20Mv

Load stability: ≦ 0.2%+20mV

Ripple: ≦ 0.3%+20mVrms

Display: Positive 4-digit digital me er Accuracy: ± 1% +2 digits (40%-100% rated value)

Program Control: Signal control or RS485 control voltage and current and data readback

Power protection: Voltage and current limiting, short circuit protection, overheat protection

Over temperature protection: Built-in O.T.P protection, protection value is 70℃ ± 5% (radiator

temperature)

Voltage setting: Stepless encoder

Current setting: Stepless encoder

Output polarity: The positive (+) output cannot be grounded, but the negative (-) output can be grounded.

Cooling method: Forced air cooling

Operating Environment/l Designed for indoor use, temperature: -10℃ ～40℃; humidity: 10%～85% RH

Dimension: 2U chassis width, depth and height (430*88*450) Instrument weight: about 6KG

Note: All values ​ ​ are typical and may exceed these values ​ ​ under different loads or other conditions.

The accuracy is measured in the load-end voltage detection state. Due to temperature errors and component aging, there may be deviations between the actual value and the rated value.
