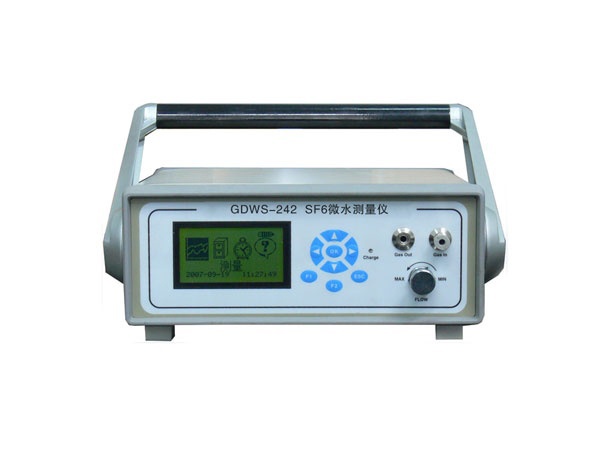

HV HIPOT GDWS-242 SF6 Gas Dew Point Tester (-80℃~+40℃/-60℃~+60℃)

Specification

Measurement range: dew point -80℃--+40℃ or -60℃--+60℃

Accuracy: ±0.5℃(with certain range)

(when the dew point temperature is below 0 ℃, the sensor output is the frost point)

Response time:

63% [90%]

+20→-20℃ Td 5s[45s]

-20→-60℃ Td 10s[240s]

Resolution: dew point 0.1℃ or 0.1ppm

Repeatability: ± 0.2 ℃;

Gas flow: 0.5-0.9L/min (SF6 gas or other gas)

0.1-0.4L/min (H2 gas)

Pressure measurement: 0-1.0Mpa

Probe protection: stainless steel sintering filter

Power supply: 110-220VAC, or Li battery.

Storage temperature: -40--+70℃

Operation temperature: -35--+60℃

Pressure: 0-20bar

Storage: 50pcs data.

With management software, including report printing, electronic quality flow meter.

Dimension: 258*240*88mm

Weight: about 3.5kg

Accessories

Main Tester x 1 piece

Aluminum carry case x 1 piece

Adapter x 1 piece

JQ04 inlet air pipe x 1 piece

CQ02 outlet air pipe x1 piece

DY03 power cord x 1 piece

TX02 USB wire x 1 piece

User’s Guide x 1 piece

Test Report x 1 piece
