Rated output voltage: 0 ~ 50kV (RMS) or below.
Output frequency: 45 - 300Hz.
Waveform: pure sine wave, THD ≤ 1%.
Max. capacity: 2000kVA or below.
Duty cycle: continuous working 15mins one time at full power output.
Quality factor: 10 - 40.
Frequency adjustment sensitivity: 0.1HZ, instability of <0.05%.
Power supply: 220V or 380V ± 15%, 50HZ ± 5%.
Input voltage (V): 380
Output voltage (kV): 0-50
Capacity (kVA): 150
Application scope:
Generator--capacitance to the ground 0.13-0.2 μF
10 kV (300 mm² ) cable ≤ 1.5 km

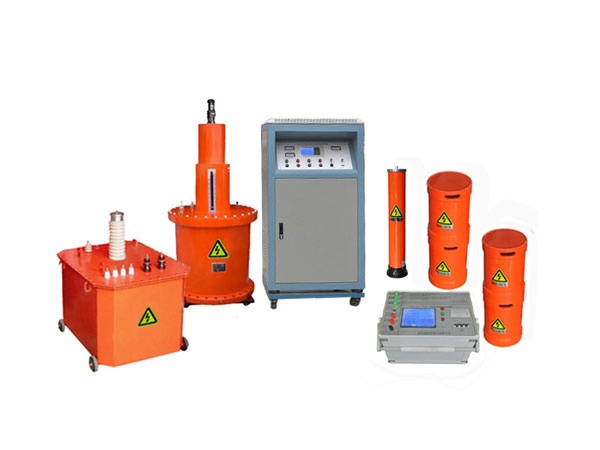

Main configurations:
Fixed reactor 1 set
50kV/1A Adjustable reactor 1 set
Capacitive divider 50kV
