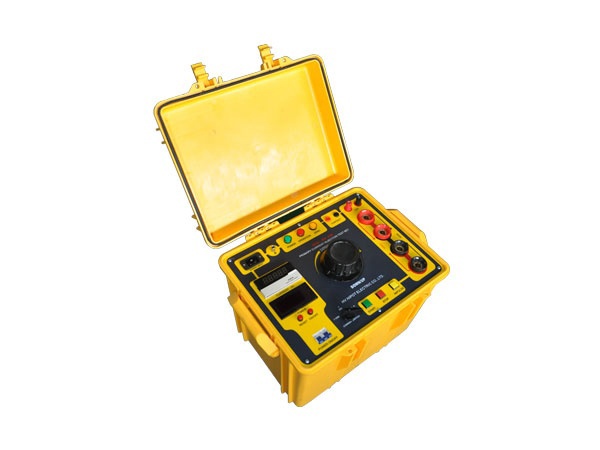

HV HIPOT GDSL-BX-200 Primary Current Injection Test Set (0-1000A AC in parallel; 0-500A AC in series)

Output current: 0-1000A AC in parallel, 0-500A AC in series

Capacity: 3kVA.

Output voltage: 3V in parallel, 6V in series.

Input voltage: AC220V, Single phase, 50Hz.

Current can be adjusted smoothly and continuously, accuracy level 1.0

Output current is standard sine wave, wave distortion is less than 5%.

Secondary injection current: 50A

Output current: RMS continuous adjustable.

The action time of test object can be tested, the lock action time is also can be recorded at same time.

Test range: 0.001S~999.999S, resolution 1ms, error: 0.005% range: ±2digs

Capacity is designed as 5 minus for short and discontinuous working.

Duty Cycle: 2.5mins ON, 10mins OFF if in batch test.
