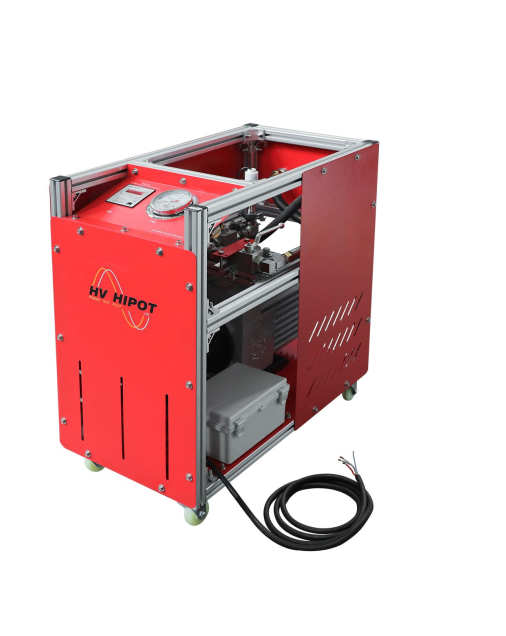

HV HIPOT GDQC-55A SF6 Gas Vacuuming and Filling Machine (55 m³/h, 10 Pa, 5 m³/h, 30 Pa)

Cooling mode: air-cooled vacuum pump, continuous running

Working principle: high pressure valve, vacuum gauge assisted vacuum pump to vacuum.

Speed rate of Vacuum pump: 55m3/h.

Limit vacuum (Pa): 10

Initial pressure: 53kPa

Final pressure: 30Pa

Recharge rate: 5 m3/h

Vacuum measurement method: pointer vacuum gauge

Vacuum gauge measuring range 0-103pa.

Yearly leak rate: ≤1%

Working environment temperature: upper limit 40℃, lower limit 5℃ , -10℃, -30℃

Noise dB(A): ≤60.

Vacuum degree 0.1mbar/10pa

Power supply: 380V±10%, 50Hz, power 1.5kW

SF6 special ball valve: High pressure vacuum dual purpose ball valve (13.5MPa, no leakage)

Vacuuming port: M20*1.5, can be selected.

Factory equipped with steel wire braided rubber hose:

M20*1.5-M30*1.5, 1.5M, 1piece.

G5/8D - M30*1.5, 1piece.

Size: 1000*580*700mm, weight about 66kg
