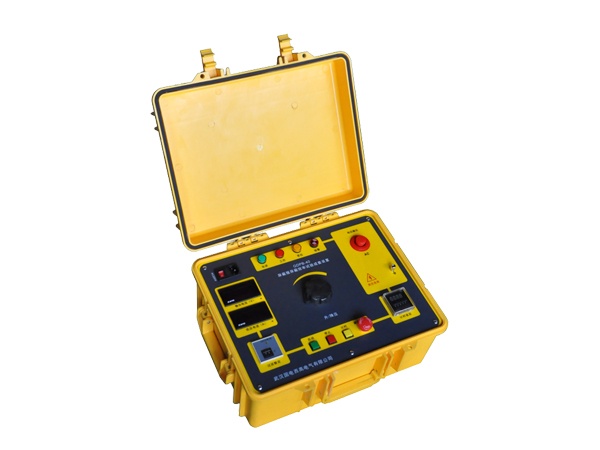

HV HIPOT GDPB-40 Shield Clothing Testing Device (AC 0—1kV±1.5%)

Generator output voltage range: AC 0—1kV±1.5% (indicative value)

Output power: AC 0.5kVA

Output waveform: AC 50Hz sine wave

Voltage measurement meter: 5 1/2 digit display voltmeter

AC measurement accuracy: Class 0.5

Pressurized electrode and receiving electrode: Manufactured according to standard

Instrument working power: AC 220V ± 10% 50Hz

It consists of:

1. voltage generator (withstand voltage tester): 1 set

2. voltage measuring instrument (digital display universal tester): 1 set

3. receiving electrode (Φ110mm * 74mm): 1pcs

4. pressurized electrode (Φ300mm * 2mm brass plate): 1pcs

5. Φ400 mm synthetic rubber sheet: 1pcs

6. 500*450mm insulated plexiglass box: 1pcs

7. tester power cord, test line: 1 set
