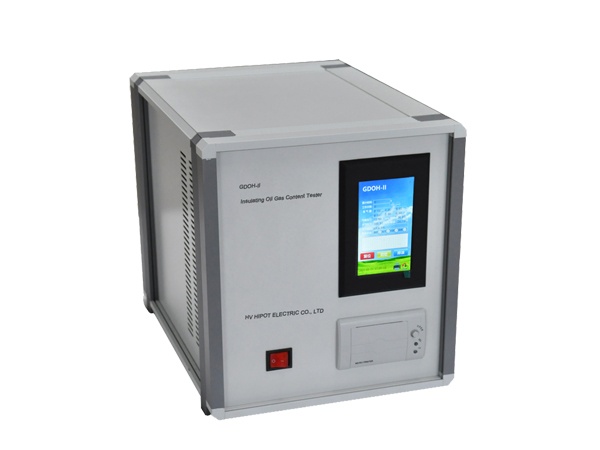

HV HIPOT GDOH-II Insulating Oil Gas Content Tester

High-precision electronic differential pressure sensor: Resolution is not less than 0.1%.

Minimum detection limit: No more than 0.2%.

Accuracy: The relative error of the repeated measurement results should not exceed the following values:

- Gas content in oil (volume fraction), %: < 0.5; 0.5~1.0; 1.0~3.0; >3.0

- Relative error,% : 10; 8; 5; 3

Degassing room temperature control range: 5℃ to 70℃ above room temperature

Working power supply: AC 220V±10%, 50Hz

Dimension: 450*325*350 mm

Weight: About 20kg

Accessories

Tester x 1 set

Power cord x 1 piece

Vacuum pump & connector x 1 set

3mm stainless steel pipe x 1.5m, 0.5m

Syringe connector x 1 set

Fuse 10A x 3 pieces

M8×1 nut x 10 pieces

Seal x 10 pieces

Syringe bracket x 1 piece

1mL calibration syringe x 1 piece

Rotary vane vacuum pump x 1 set

Instruction Manual x 1 copy

Product certification x 1 copy

Factory test report x 1 copy

Packing list x 1 copy
