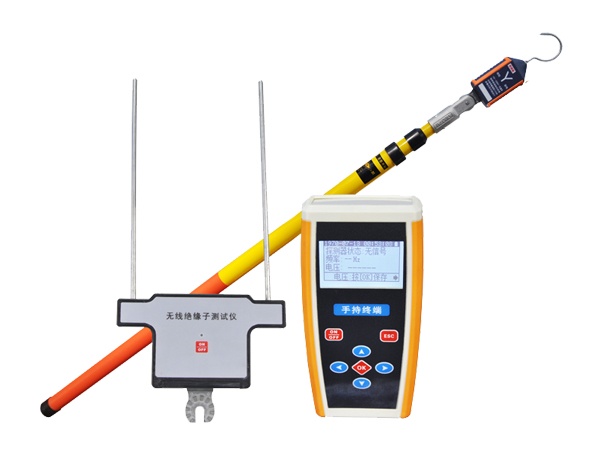

HV HIPOT GDJW-40B Wireless Insulator Tester (35-1000kV)

Working voltage: 35 - 1000kV (applicable for different voltage grades)

Voltage measurement range: 0 - 40kV (can be customized)

Measurement error: ≤±1%

Resolution: 0.01kV

Sampling rate: 10 times/second

Working current: ≤ 120mA (for hand-held terminal), ≤ 40mA (for detector)

Power supply:

2pcs 1.5V AA size dry battery (for hand-held terminal)

2pcs 1.5V AAA size dry battery (for detector)

Working time: More than 12 hours (continuously)

Line-of-sight propagation distance for detector and handheld terminal: ≤100m (with full power)

Display: LCD display, legible in the sunlight.

Working temperature: -35℃~+60℃

Storage temperature: -40℃~+65℃

Relative humidity: ≤ 90%RH (no condensing)
